The XC0900P-03S is a low profile, high performance 3dB hybrid coupler in a new easy to use, manufacturing friendly surface mount package. It is designed for NMT band applications. The XC0900A-03S is designed particularly for balanced power and low noise amplifiers, plus signal distribution and other applications where low insertion loss and tight amplitude and phase balance is required. It can be used in high power applications up to 45 Watts.
Parametrics
XC0900P-03S electrical characteristcs: (1)frequency: 410 to 480MHz ; (2)isolation: 23dB min,; (3)insertion loss: 0.36dB max.; (4)VSWR: 1.22 max:1; (5)amplitude balance: ±0.15dB max.; (6)phase balance: 90±3.5°; (7)power: 45 avg.CW watts; (8)θJC: 27°C/w; (9)operating temperature: -55 to +95°C.
Features
XC0900P-03S features: (1)410 to 480 MHz; (2)NMT; (3)Very Low Loss; (4)Tight Amplitude Balance; (5)High Isolation; (6)Production Friendly; (7)Tape and Reel; (8)Available in Lead-Free (as illustrated)or Tin-Lead; (9)Reliable, FIT= 0.53.

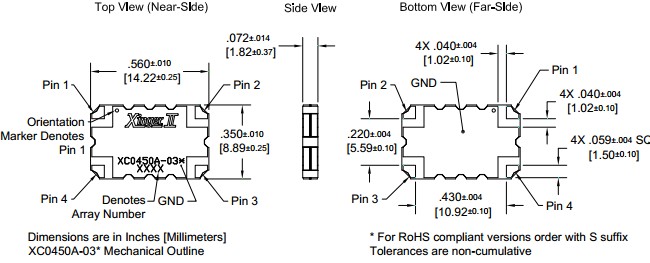

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 XC0900P-03S |
