Product Summary
The 25lc640xt is a 64 Kbit Serial Electrically Erasable PROM [EEPROM]. The memory is accessed via a simple Serial Peripheral Interface (SPI) compatible serial bus. The bus signals required are a clock input (SCK) plus separate data in (SI) and data out (SO) lines. Access to the device is controlled through a Chip Select (CS) input.
Parametrics
25lc640xt absolute maximum ratings: (1)VCC: 7.0V; (2)All inputs and outputs w.r.t. VSS: -0.6V to VCC + 1.0V; (3)Storage temperature: -65°C to 150°C; (4)Ambient temperature under bias: -65°C to 125°C; (5)ESD protection on all pins: 4 kV.
Features
25lc640xt features: (1)8192 x 8 Bit Organization; (2)32 Byte Page; (3)Write Cycle Time: 5 ms max.; (4)Self-Timed Erase and Write Cycles; (5)Sequential Read; (6)8-pin PDIP, SOIC and TSSOP Packages.

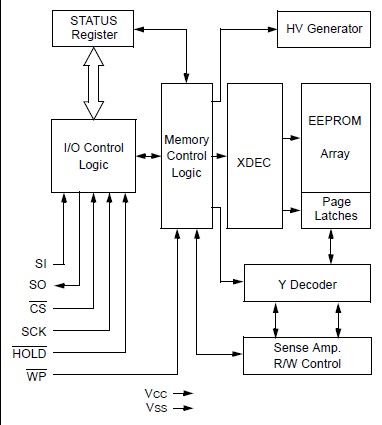

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 25LC640XT-I/ST |
Microchip Technology |
EEPROM 8kx8 - 2.5V Rot Pin |
Data Sheet |
|
|
||||||||
|
25LC640XT-I/STG |
Microchip Technology |
EEPROM 8kx8 - 2.5V Rot Pin Lead Free Package |
Data Sheet |
Negotiable |
|
||||||||
