Product Summary

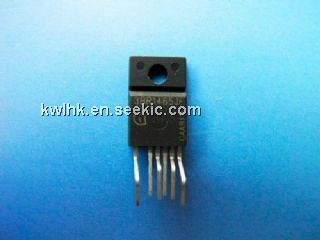

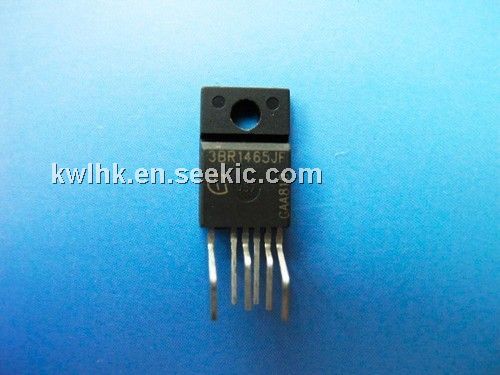

The 3BR1465JF is a 65V Off-Line SMPS Current Mode Controller. It has a wide Vcc range to 25V by adopting the BiCMOS technology. With the merit of Active Burst Mode, it can achieve the lowest Standby Power Requirements(<100mW) at no load and Vin = 270VAC. Since the 3BR1465JF is always active during the Active Burst Mode, it is an immediate response on load jumps and leads to <1% voltage ripple voltage at output.
Parametrics
3BR1465JF absolute maximum ratings: (1)Switching drain current, pulse width tp limited by Tj=150℃, Is: 4.5 A; (2)Pulse drain current, pulse width tp limited by Tj=150℃, ID_Puls : 8.2A; (3)Avalanche energy, repetitive tAR limited by max. Tj=150℃), EAR: 0.12mJ; (4)Avalanche current, repetitive tAR limited by max. Tj=150℃), IAR: 1.9 A; (5)VCC Supply Voltage, VVCC: -0.3 to 27 V; (6)FB Voltage, VFB: -0.3 to 5.5 V; (7)BA Voltage, VBA: -0.3 to 5.5 V; (8)CS Voltage, VCS: -0.3 to 5.5 V; (9)Junction Temperature, Tj: -40 to 150℃; (10)Storage Temperature, TS: -55 to 150℃; (11)Thermal Resistance Junction -Ambient, RthJA: 82 K/W; (12)Soldering temperature, wavesoldering only allowed at leads, Tsold: 260℃; (13)ESD Capability (incl. Drain Pin), VESD: 2 kV.
Features
3BR1465JF features: (1)650V avalanche rugged CoolMOS with built-in Startup Cell; (2)Active Burst Mode for lowest Standby Power; (3)Fast load jump response in Active Burst Mode; (4)67kHz internally fixed switching frequency; (5)Auto Restart Protection Mode for Overload, Open Loop, VCC Undervoltage, Overtemperature & Overvoltage; (6)Built-in Soft Start; (7)Built-in blanking window with extendable blanking time for short duration high current; (8)External auto-restart enable pin; (9)Max Duty Cycle 75%; (10)Overall tolerance of Current Limiting < ±5%; (11)Internal PWM Leading Edge Blanking; (12)BiCMOS technology provide wide VCC range; (13)Built-in Frequency jitter and soft driving for low EMI.
Diagrams
