Product Summary

The CD4070BE is a CMOS quad Exclusive-OR gate. It provides the system designer with a means for direct implementation of the Exclusive-OR functions, respectively. The applications of the CD4070BE include: Logical Comparators, Adders/Subtractors, Parity Generators and Checkers.

Parametrics

CD4070BE absolute maximum ratings: (1)DC Supply Voltage Range (VDD): -0.5V to 20V; (2)Input Voltage Range, All Inputs: -0.5V to VDD 0.5V; (3)DC Input Current: ±10mA.

Features

CD4070BE features: (1)High-Voltage Types (20V Rating); (2)Quad Exclusive-OR Gate; (3)Medium Speed Operation: tPHL, tPLH = 65ns (Typ) at VDD = 10V, CL = 50pF; (4)100% Tested for Quiescent Current at 20V; (5)Standardized Symmetrical Output Characteristics; (6)5V, 10V and 15V Parametric Ratings; (7)Maximum Input Current of 1μA at 18V Over Full Package Temperature Range: 100nA at 18V and 25℃.

Diagrams

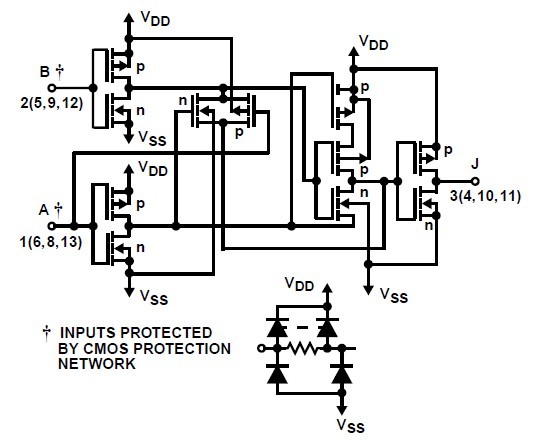

CD4070BE block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
CD4070BE
CD4070BE
Texas Instruments
Gates (AND / NAND / OR / NOR) Quad Exclusive
Data Sheet
0-1: $0.25
1-25: $0.21
25-100: $0.16
100-250: $0.16
CD4070BEE4
CD4070BEE4
Texas Instruments
Gates (AND / NAND / OR / NOR) Quad Exclusive
Data Sheet
0-1: $0.30
1-25: $0.22
25-100: $0.19
100-250: $0.17
