Product Summary

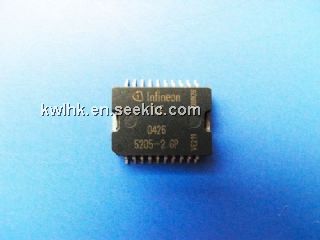

The 5205-2GP is an integrated power H-bridge with DMOS output stages for driving DC-Motors. The part is built of the 5205-2GP using the Infineon multi-technology process SPT which allows bipolar and CMOS control circuitry plus DMOS power devices to exist on the same monolithic structure. Operation modes forward (cw), reverse (ccw), brake and high impedance are invoked from just two control pins with TTL/CMOS compatible levels.

Parametrics

5205-2GP absolute maximum ratings: (1)Supply voltage, VS: -0.3 to 40V; (2)Logic input voltage, VIN1, 2: -0.3 to 7V; (3)Diagnostics output voltage, VEF: -0.3 to 7V; (4)Output current (cont.), IOUT1, 2: -5 to 5A; (5)Output current (peak), IOUT1, 2: -6 to 6A; (6)Junction temperature, Tj: -40 to 150℃; (7)Storage temperature, Tstg: -50 to 150℃ ; (8)Junction case, RthjC: 3K/W; (9)Junction ambient, RthjA: 65K/W; (10)Junction case, RthjC: 5K/W; (11)Junction ambient, RthjA: 50K/W.

Features

5205-2GP features: (1)Delivers up to 5 A continuous 6 A peak current; (2)Optimized for DC motor management applications; (3)Operates at supply voltages up to 40V; (4)Very low RDS ON; typ. 200 mΩ @ 25℃ per switch; (5)Output full short circuit protected; (6)Overtemperature protection with hysteresis and diagnosis; (7)Short circuit and open load diagnosis with open drain error flag; (8)Undervoltage lockout; (9)CMOS/TTL compatible inputs with hysteresis; (10)No crossover current; (11)Internal freewheeling diodes; (12)Wide temperature range; -40℃ < Tj < 150℃.

Diagrams

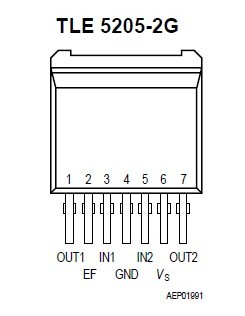

 5205-2GP Pin Configuration
