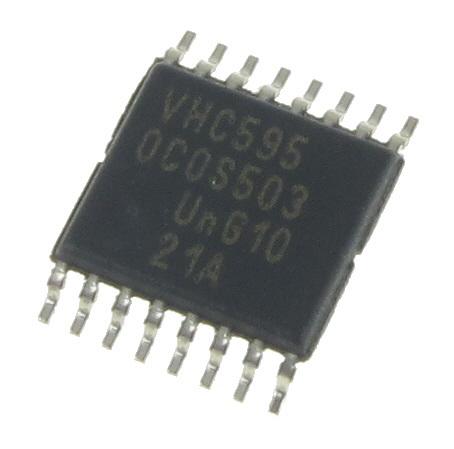

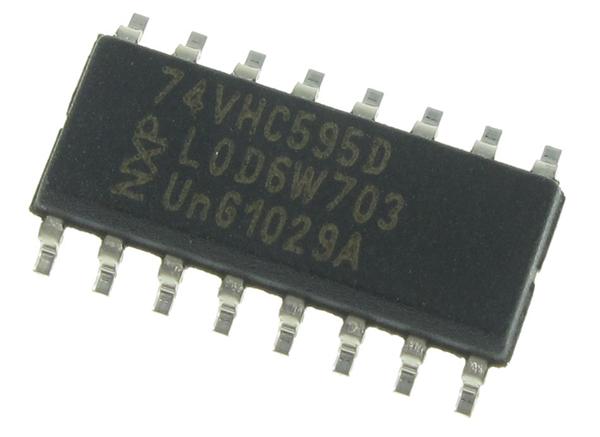

Product Summary
The 74VHC595 is an advanced high-speed CMOS Shift Register fabricated with silicon gate CMOS technology. It achieves the high-speed operation similar to equivalent Bipolar Schottky TTL while maintaining the CMOS low power dissipation. This device 74VHC595 contains an 8-bit serial-in, parallel-out shift register that feeds an 8-bit D-type storage register. The storage register has eight 3-STATE outputs.
Parametrics
74VHC595 absolute maximum ratings: (1)Supply Voltage, (VCC): -0.5V to +7.0V; (2)DC Input Voltage, (VIN): -0.5V to +7.0V; (3)DC Output Voltage, (VOUT): -0.5V to VCC + 0.5V; (4)Input Diode Current, (IIK): -20 mA; (5)Output Diode Current, (IOK): ±20 mA; (6)DC Output Current, (IOUT): ±25 mA; (7)DC VCC/GND Current, (ICC): ±75 mA; (8)Storage Temperature, (TSTG): -65 to +150℃; (9)Lead Temperature, (TL): 260℃.
Features
74VHC595 features: (1)High Speed: tPD = 5.4 ns (typ) at VCC = 5V; (2)Low power dissipation: ICC = 4 μA (max) at TA = 25℃; (3)High noise immunity: VNIH = VNIL = 28% VCC (min); (4)Power down protection is provided on all inputs; (5)Low noise: VOLP = 0.9V (typ); (6)Pin and function compatible with 74HC595.

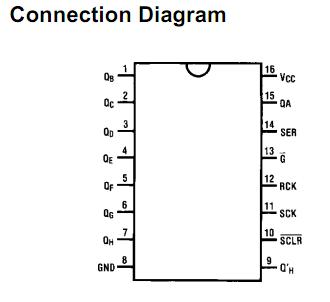

Diagrams
