Product Summary

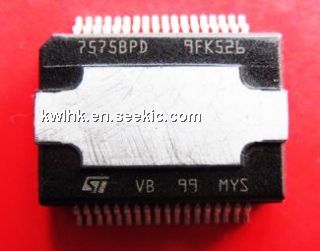

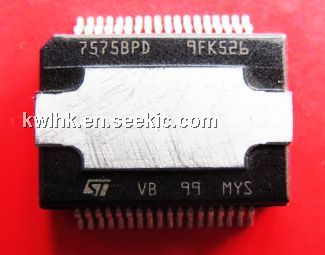

The 7575BPD is a new MOSFET dual bridge amplifier specially intended for car radio applications. Thanks to the DMOS output stage the 7575BPD has a very low distortion allowing a clear powerful sound. The 7575BPD is equipped with a full diagnostic array that communicates the status of each speaker through the I2C bus. Among the features, its superior efficiency performance coming from the internal exclusive structure, makes it the most suitable device to simplify the thermal management in high power sets.

Parametrics

7575BPD absolute maximum ratings: (1)Operating supply voltage: 18 V; (2)VDC supply voltage: 28 V; (3)Peak supply voltage (for t = 50ms): 50 V; (4)CK pin voltage: 6 V; (5)Data pin voltage: 6 V; (6)Output peak current (not repetitive t = 100ms): 8 A; (7)Output peak current (repetitive f > 10Hz): 6 A; (8)Power dissipation Tcase = 70°C: 86 W; (9)Storage and junction temperature: -55 to 150 °C.

Features

7575BPD features: (1)Multipower bcd technology; (2)MOSFET output power stage; (3)DMOS power output; (4)New Hi-efficiency (class AB); (5)Single-channel 1Ω driving capability; (6)Possibility to disable the I2C bus; (7)Differential inputs; (8)Full fault protection; (9)DC offset detection; (10)Two independent short circuit protections.

Diagrams

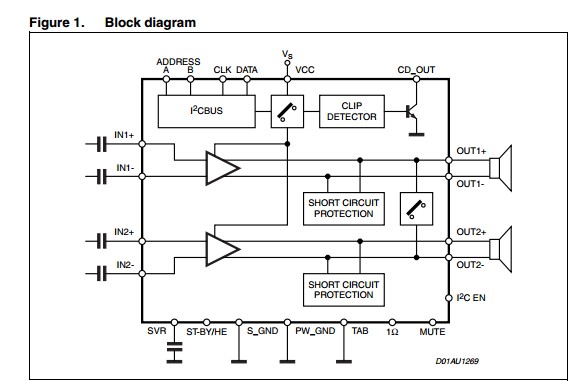

7575BPD block diagram
