Product Summary
The TOSHIBA mini flat coupler TLP181GR is a small outline coupler, suitable for surface mount assembly. TLP181GR consists of a photo transistor optically coupled to a gallium arsenide infrared emitting diode.
Parametrics
TLP181GR absolute maximum ratings: (1)Forward current IF 50 mA; (2)Forward current detating ΔIF / ℃ -0.7 (Ta ≥ 53℃) mA / ℃; (3)Pulse forward current(100μs pulse, 100pps) IFP: 1 A; (4)Reverse voltage VR: 5 V; (5)Junction temperature Tj: 125 ℃.
Features
TLP181GR features: (1)Storage temperature range Tstg: -55~125℃; (2)Operating temperature range Topr: -55~100℃; (3)Lead soldering temperature Tsol: 260 (10s) ℃; (4)Total package power dissipation PT: 200 mW; (5)Total package power dissipation derating (Ta ≥ 25℃) ΔPT / ℃: -2.0 mW / ℃; (6)Isolation voltage: (AC, 1min, R.H. ≤ 60%) BVS: 3750 Vrms.

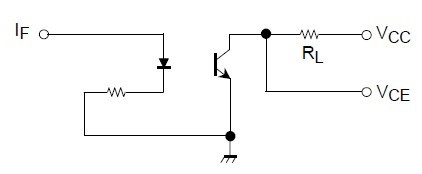

Diagrams
 |
