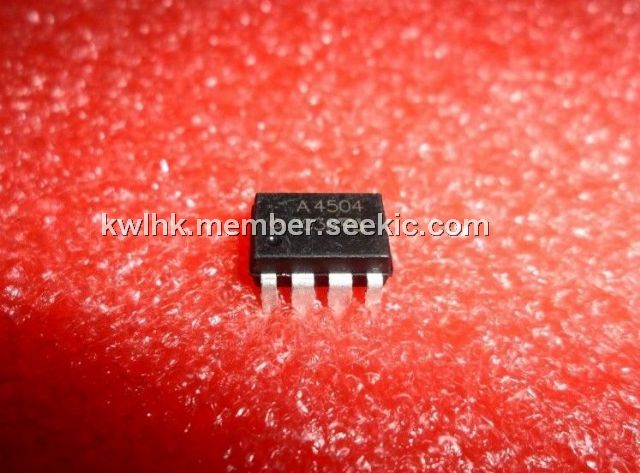

A4504

Product Summary

The A4504 is a high CMR, high speed optocoupler. The optocoupler is similar to HP’s other high speed transistor optocouplers but with shorter propagation delay and higher CTR. The A4504 also has a guaranteed propagation delay difference (tPLH - tPHL). These features make the optocoupler an excellent solution to IPM inverter dead time and other switching problems. The A4504 CTR, propagation delay, and CMR are specified for both TTL and IPM load/drive conditions. Specifications and typical performance plots for both TTL and IPM conditions are provided for ease of application. The single channel, diodetransistor optocoupler is available in 8-Pin DIP, SO-8, and Widebody package configuration. An insulating layer between a LED and an integrated photodetector provides electrical insulation between input and output. The applications of the A4504 include Inverter circuits andintelligent power module(IPM) interfacing, Line Receivers, High Speed Logic Ground Isolation - TTL/TTL, TTL/CMOS, TTL/LSTTL, replaces pulse transformers, Analog Signal Ground Isolation.

Parametrics

A4504 absolute maximum ratings: (1)Storage Temperature, TS: -55 to 125℃; (2)Operating Temperature, TA: -55 to 100℃; (3)Average Forward Input Current, IF(AVG): 25 mA ; (4)Peak Forward Input Current, IF(PEAK):50 mA ; (5)Peak Transient Input Current(≤ 1 μs pulse width, 300 pps), IF(TRANS): 1 A; (6)Reverse LED Input Voltage (Pin 3-2), VR: 5 V; (7)Input Power Dissipation, PIN: 45 mW ; (8)Average Output Current (Pin 6), IO(AVG): 8 mA; (9)Peak Output Current, IO(PEAK): 16 mA; (10)Supply Voltage (Pin 8-5), VCC: -0.5 to 30 V; (11)Output Voltage (Pin 6-5), VO: -0.5 to 20 V; (12)Output Power Dissipation, PO: 100 mW; (13)Lead Solder Temperature (Through-Hole Parts Only), 1.6 mm below seating plane, 10 seconds up to seating plane, 10 seconds, TLS: 260℃.

Features

A4504 features: (1)Short Propagation Delays for TTL and IPM Applications; (2)15 kV/ms Minimum Common Mode Transient Immunity at VCM = 1500 V for TTL/Load Drive; (3)High CTR at TA = 25℃, >25% for HCPL-4504; (4)Electrical Specifications for Common IPM Applications; (5)TTL Compatible; (6)Guaranteed Performance from 0℃ to 70℃; (7)Open Collector Output; (8)Safety Approval.

Diagrams
