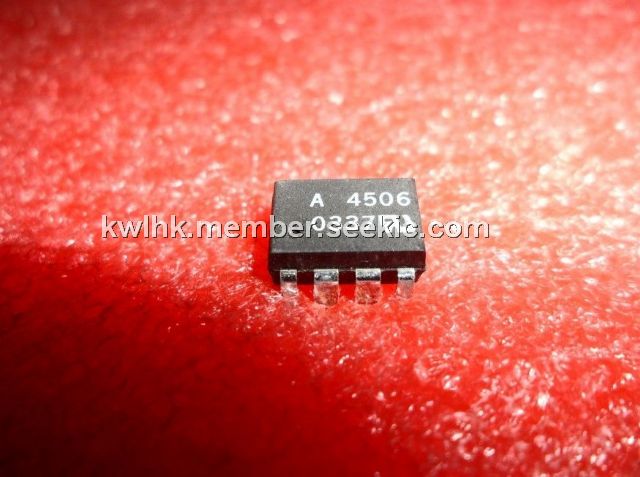

A4506

Product Summary

The A4506 is a gate drive interface optocoupler. The A4506 contains an AlGaAs LED. The LED is optically coupled to an integrated high gain photo detector. Minimized propa-gation delay difference between devices make the A4506 excellent solutions for improving inverter efficiency through reduced switching dead time. An on chip 20 kW output pull-up resistor can be enabled by shorting output pins 6 and 7, thus eliminating the need for an external pull-up resistor in common IPM applications. Specifications and performance plots are given for typical IPM applications. The applications of the A4506 include IPM Isolation, Isolated IGBT/MOSFET Gate Drive, AC and Brushless DC Motor Drives, Industrial Inverters.

Parametrics

A4506 absolute maximum ratings: (1)Storage Temperature, TS: -55 to 125℃; (2)Operating Temperature, TA: -40 to 100℃; (3)Average Input Current, IF(avg): 25 mA; (4)Peak Input Current, (50% duty cycle, ≤ 1 ms pulse width), IF(peak): 50 mA; (5)Peak Transient Input Current (<1 ms pulse width, 300 pps), IF(tran): 1.0 A; (6)Reverse Input Voltage (Pin 3-2), VR: 5 Volts; (7)Average Output Current (Pin 6), IO(avg): 15 mA; (8)Resistor Voltage (Pin 7), V7: -0.5 to VCC Volts; (9)Output Voltage (Pin 6-5), VO: -0.5 to 30 Volts; (10)Supply Voltage (Pin 8-5), VCC: -0.5 to 30 Volts; (11)Output Power Dissipation, PO: 100 mW; (12)Total Power Dissipation, PT: 145 mW; (13)Lead Solder Temperature: 26℃ for 10 s, 1.6 mm below seating plane; (14)Lead Solder Temperature: 260℃ for 10 s (up to seating plane); (15)Infrared and Vapor Phase Reflow Temperature: See Package Outline Drawings Section.

Features

A4506 features: (1)Performance Specified for Common IPM Applications over Industrial Temperature Range: -40℃ to 100℃; (2)Fast Maximum Propagation Delays, tPHL = 400 ns; tPLH = 550 ns; (3)Minimized Pulse Width Distortion (PWD = 450 ns); (4)15 kV/ms Minimum Common Mode Transient Immunity at VCM = 1500 V; (5)CTR > 44% at IF = 10 mA; (6)Safety Approval.

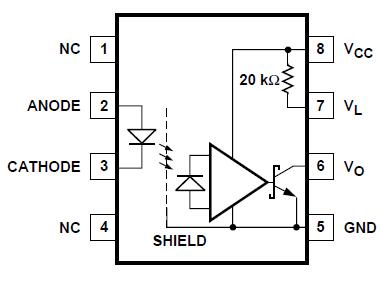

Diagrams
