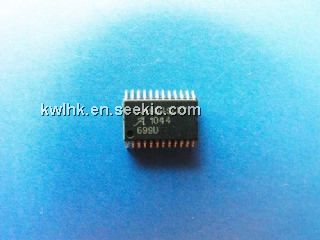

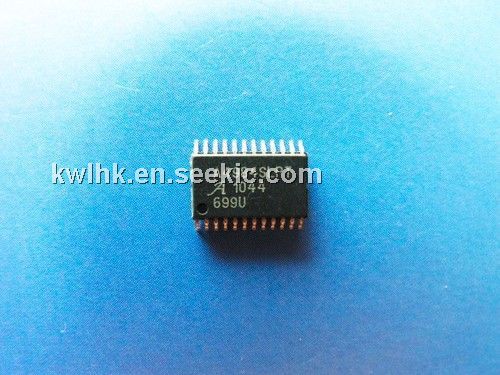

Product Summary

The A4984SLPT is a complete microstepping motor driver with built-in translator for easy operation. It is designed to operate bipolar stepper motors in full-, half-, quarter-, and eighth-step modes. Step modes are selectable by MSx logic inputs. It has an output drive capacity of up to 35 V and ±2 A. The A4984SLPT includes a fixed off-time current regulator which has the ability to operate in Slow or Mixed decay modes.

Parametrics

A4984SLPT absolute maximum ratings: (1)Load Supply Voltage VBB: 35 V; (2)Output Current IOUT: ±2 A; (3)Logic Input Voltage VIN: –0.3 to 5.5 V; (4)Logic Supply Voltage VDD: –0.3 to 5.5 V; (5)VBBx to OUTx : 35 V; (6)Sense Voltage VSENSE: 0.5 V; (7)Reference Voltage VREF: 5.5 V; (8)Operating Ambient Temperature TA Range S: –20 to 85 °C; (9)Maximum Junction TJ(max): 150 °C; (10)Storage Temperature Tstg: –55 to 150 °C.

Features

A4984SLPT features: (1)Low RDS(ON)outputs; (2)Automatic current decay mode detection/selection; (3)Mixed and Slow current decay modes; (4)Synchronous rectification for low power dissipation; (5)Internal UVLO; (6)Crossover-current protection; (7)3.3 and 5 V compatible logic supply; (8)Thin profile QFN and TSSOP packages; (9)Thermal shutdown circuitry; (10)Short-to-ground protection; (11)Shorted load protection; (12)Low current Sleep mode, < 10 μA; (13)No smoke no fire (NSNF)compliance (ET package).

Diagrams

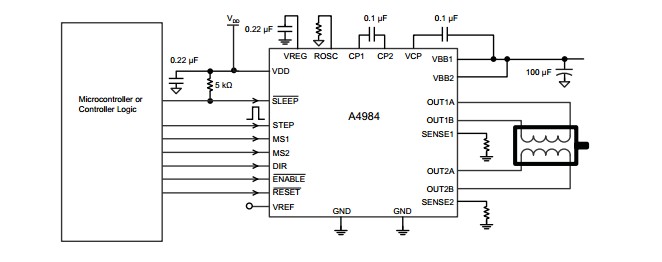

A4984SLPT block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
A4984SLPTR-T
A4984SLPTR-T

IC STEPPER MOTOR DRIVER 24TSSOP
Data Sheet
0-1: $2.20
1-10: $1.97
10-50: $1.77
50-100: $1.61
100-250: $1.46
250-500: $1.30
500-1000: $1.10
1000-2500: $1.04
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
A4980KLPTR-T
A4980KLPTR-T

IC STEPPER DVR PROGR 28-TSSOP
Data Sheet
0-4000: $1.31
4000-8000: $1.26
8000-12000: $1.22
12000-28000: $1.18
A4982SETTR-T
A4982SETTR-T

IC STEPPER MOTOR DRIVER 32QFN
Data Sheet
0-1: $2.08
1-10: $1.86
10-50: $1.67
50-100: $1.52
100-250: $1.38
250-500: $1.23
500-1000: $1.04
1000-2500: $0.99
A4982SLPTR-T
A4982SLPTR-T

IC DRIVER MICROSTEPPING 24-TSSOP
Data Sheet
0-1: $2.20
1-10: $1.97
10-50: $1.77
50-100: $1.61
100-250: $1.46
250-500: $1.30
500-1000: $1.10
1000-2500: $1.04
A4983
A4983
Other

Data Sheet
Negotiable
A4983SETTR-T
A4983SETTR-T

IC MOTOR DRIVER MICROSTEP 28-QFN
Data Sheet
0-1: $2.45
1-10: $2.20
10-50: $1.98
50-100: $1.80
100-250: $1.63
250-500: $1.46
A4984SESTR-T
A4984SESTR-T

IC STEPPER MOTOR DRIVER 24QFN
Data Sheet
0-1: $1.90
1-10: $1.70
10-50: $1.53
50-100: $1.39
100-250: $1.26
250-500: $1.13
