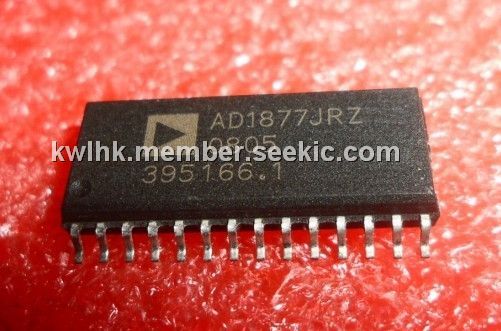

Product Summary

The AD1877JRZ is a stereo, 16-bit oversampling ADC. The AD1877JRZ is based on Sigma Delta technology intended primarily for digitalaudio bandwidth applications requiring a single 5 V power supply. Each single-ended channel consists of a fourth-order one-bitnoise shaping modulator and a digital decimation filter. An on-chip voltage reference, stable over temperature and time, definesthe full-scale range for both channels. Digital output data from both channels are time-multiplexed to a single, flexible serialinterface. Applications include Consumer Digital Audio Receivers, Digital Audio Recorders, Including Portables CD-R, DCC, MD and DAT, Multimedia and Consumer Electronic Equipment, Sampling Music Synthesizers and Digital Karaoke Systems.

Parametrics

AD1877JRZ absolute maximum ratings: (1)Supply Voltages: 5.0V; (2)Ambient Temperature: 25℃; (3)Input Clock (FCLKIN) [256× FS]: 12.288MHz; (4)Input Signal: 991.768Hz; (5)Measurement Bandwidth: 23.2 Hz to 19.998 kHz; (6)Load Capacitance on Digital Outputs: 50pF; (7)Input Voltage HI (VIH):2.4V; (8)Input Voltage LO (VIL):0.8V.

Features

AD1877JRZ features: (1)Single 5 V Power Supply; (2)Single-Ended Dual-Channel Analog Inputs; (3)92 dB (Typ) Dynamic Range; (4)90 dB (Typ) S/(THD+N); (5)0.006 dB Decimator Passband Ripple; (6)Fourth-Order, 64-Times Oversampling Modulator; (7)Three-Stage, Linear-Phase Decimator; (8)256FS or 384FS Input Clock; (9)Less than 100W (Typ) Power-Down Mode; (10)Input Overrange Indication; (11)On-Chip Voltage Reference; (12)Flexible Serial Output Interface; (13)28-Lead SOIC Package.

Diagrams

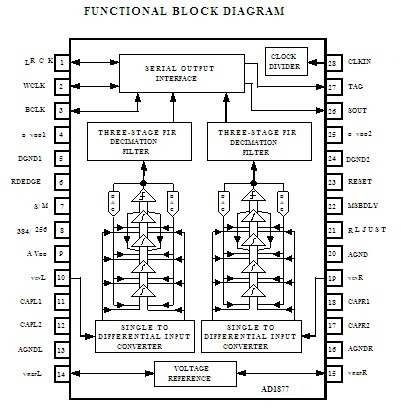

AD1877JRZ block diagram
