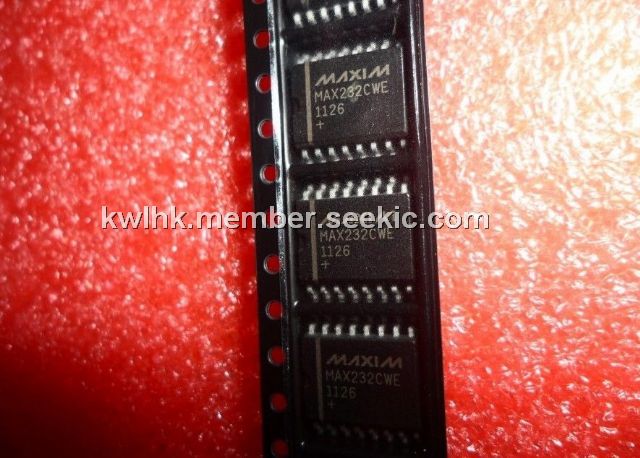

Product Summary

The MAX232CWE is a line driver/receiver, which is intended for all EIA/TIA-232E and V.28/V.24 communications interfaces, particularly applications where ±12V is not available. The applications of the MAX232CWE include Portable Computers, Low-Power Modems, Interface Translation, Battery-Powered RS-232 Systems, Multidrop RS-232 Networks.

Parametrics

MAX232CWE absolute maximum ratings: (1)VCC: -0.3V to +6V; (2)V+: (VCC - 0.3V) to +14V; (3)V-: +0.3V to -14V; (4)Input Voltages: TIN: -0.3V to (VCC - 0.3V); (5)Output Voltages: TOUT: ±15V; (6)Operating Temperature Ranges: 0℃ to +70℃; (7)Storage Temperature Range: -65℃ to +160℃; (8)Lead Temperature (soldering, 10s): +300℃.

Features

MAX232CWE features: (1)For Low-Voltage, Integrated ESD Applications: MAX3222E/MAX3232E/MAX3237E/MAX3241E/MAX3246E: +3.0V to +5.5V, Low-Power, Up to 1Mbps, True RS-232 Transceivers Using Four 0.1μF External Capacitors (MAX3246E Available in a UCSP. Package); (2)For Low-Cost Applications: MAX221E: ±15kV ESD-Protected, +5V, 1μA, Single RS-232 Transceiver with AutoShutdown.

Diagrams

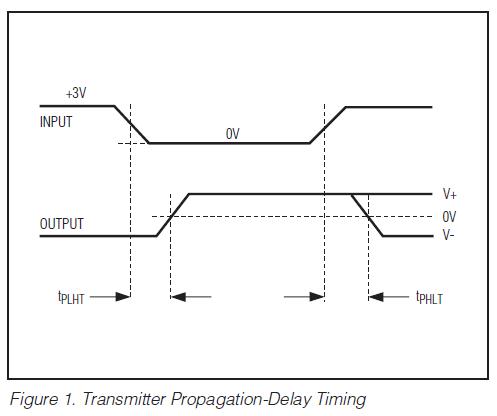

MAX232CWE Transmitter Propagation-Delay Timing diagram
