Product Summary

The AD622AN is a low cost, moderately accurate instrumentation amplifier that requires only one external resistor to set any gain between 2 and 1,000. Or for a gain of 1, no external resistor is required. The AD622AN is a complete difference or subtracter amplifier “system” while providing superior linearity and commonmode rejection by incorporating precision laser trimmed resistors. The AD622AN replaces low cost, discrete, two or three op amp instrumentation amplifier designs and offers good commonmode rejection, superior linearity, temperature stability, reliability, and board area consumption. The applications of the AD622AN include Transducer Interface, Low Cost Thermocouple Amplifier, Industrial Process Controls, Difference Amplifier, Low Cost Data Acquisition.

Parametrics

AD622AN absolute maximum ratings: (1)Supply Voltage: ±18 V; (2)Internal Power Dissipation 650 mW; (3)Input Voltage (Common Mode): ±VS; (4)Differential Input Voltage: ±25 V; (5)Output Short Circuit Duration: Indefinite; (6)Storage Temperature Range (N, R): -65℃ to +125℃; (7)Operating Temperature Range: -40℃ to +85℃; (8)Lead Temperature Range (Soldering 10 seconds): +300℃.

Features

AD622AN features: (1)Easy to Use; (2)Low Cost Solution; (3)Higher Performance than Two or Three Op Amp Design; (4)Unity Gain with No External Resistor; (5)Optional Gains with One External Resistor (Gain Range 2 to 1000); (6)Wide Power Supply Range (62.6 V to 615 V); (7)Available in 8-Lead PDIP and SOIC; (8)Low Power, 1.5 mA max Supply Current.

Diagrams

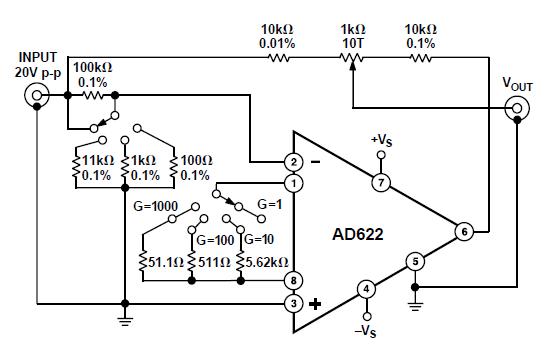

AD622AN circuit diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
AD622ANZ
AD622ANZ

IC AMP INST LP 18MA 8DIP
Data Sheet
0-1: $3.73
1-10: $3.35
10-25: $3.06
25-100: $2.76
100-250: $2.53
250-500: $2.31
500-1000: $2.01
1000-2500: $1.99
