Product Summary

The AD741CH is a high performance monolithic operational amplifier. The AD741CH features full short circuit protection and internal compensation. The Analog Devices AD741J, AD741K, AD741L, and AD741S are specially tested and selected versions of the standard AD741 operational amplifier. Improved processing and additional electrical testing guarantee the user precision performance at a very low cost. The AD741J, K and L substantially increase overall accuracy over the standard AD741C by providing maximum limits on offset voltage drift and significantly reducing the errors due to offset voltage, bias current, offset current, voltage gain, power supply rejection and common-mode rejection.

Parametrics

AD741CH absolute maximum ratings: (1)Supply Voltage: ±22 V; (2)Internal Power Dissipation: 500 mW; (3)Differential Input Voltage: ±30 V; (4)Input Voltage: ±15 V; (5)Storage Temperature Range: -65°C to +150°C; (6)Lead Temperature (Soldering, 60 sec): +300°C.

Features

AD741CH features: (1)Low VOS: 0.5 mV max (L); (2)Low VOS Drift: 5 mV/8C max (L); (3)Low Ib: 50 nA max (L); (4)Low lOS: 5 nA max (L); (5)High CMRR: 90 dB min (K, L); (6)AOL = 25,000 min, 1 kV Load (J, S)TMIN to TMAX; (7)VO = 610 V min, 1 kV Load (J, S); (8)Chips and MIL-STD-883B Parts Available.

Diagrams

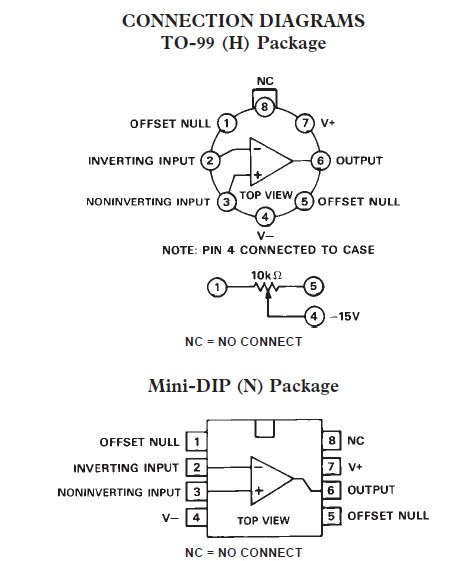

AD741CH pin connection
