Product Summary
The AD7524JNZ is a low cost, 8-bit monolithic CMOS DAC designed for direct interface to most microprocessors. Load cycle of the AD7524JNZ is similar to the write cycle of a random access memory. Using an advanced thin-film on CMOS fabrication process, the device provides accuracy to 1/8 LSB with a typical power dissipation of less than 10 milliwatts. The applications of the AD7524JNZ include microprocessor controlled gain circuits, microprocessor controlled attenuator circuits, microprocessor controlled function generation, precision agc circuits and bus structured instruments. Featuring operation from +5 V to +15 V, the AD7524JNZ interfaces directly to most microprocessor buses or output ports.
Parametrics
AD7524JNZ absolute maximum ratings: (1)VDD to GND: –0.3 V, +17 V; (2)VRFB to GND: ±25 V; (3)VREF to GND: ±25 V; (4)Digital Input Voltage to GND: –0.3 V to VDD +0.3 V; (5)OUT1, OUT2 to GND: –0.3 V to VDD +0.3 V; (6)Power Dissipation (Any Package) To +75℃: 450 mW; Derates above 75℃ by: 6 mW/℃; (7)Operating Temperature: –40 to +85℃; (8)Storage Temperature: –65 to +150℃; (9)Lead Temperature (Soldering, 10 secs): +300℃.
Features
AD7524JNZ features: (1)Microprocessor Compatible (6800, 8085, Z80, Etc.); (2)TTL/CMOS Compatible Inputs; (3)On-Chip Data Latches; (4)Endpoint Linearity; (5)Low Power Consumption; (6)Monotonicity Guaranteed (Full Temperature Range); (7)Latch Free (No Protection Schottky Required).

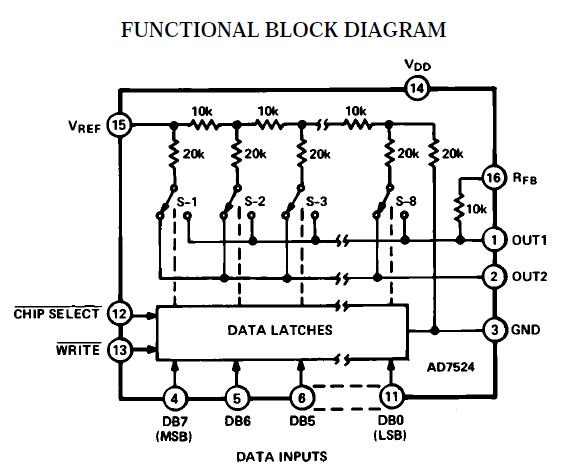

Diagrams
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
![]() AD7524JNZ |
![]() |
![]() IC DAC 8BIT MULTIPLYING 16-DIP |
![]() Data Sheet |
![]()
|
|
||||||||||||||||||
