Product Summary

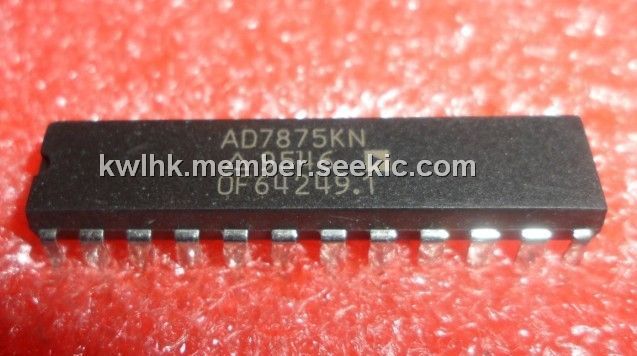

The AD7875KN is a fast, complete, 12-bit A/D converter. It consists of a track/hold amplifier, 8 µs successive- approximation ADC, 3 V buried Zener reference and versatile interface logic. The AD7875KN features a self-contained internal clock which is laser trimmed to guarantee accurate control of conversion time. No external clock timing components are required; the on-chip clock may he overridden by an external clock if required.
Parametrics
AD7875KN absolute maximum ratings: (1)VDD to AGND: –0.3 V to +7 V; (2)VSS to AGND: +0.3 V to –7 V; (3)AGND to DGND: –0.3 V to VDD +0.3 V; (4)VIN to AGND: –15 V to +15 V; (5)REF OUT to AGND: 0 V to VDD; (6)Digital Inputs to DGND: –0.3 V to VDD +0.3 V; (7)Digital Outputs to DGND: –0.3 V to VDD +0.3 V; (8)Operating Temperature Range: 0 to +70℃; (9)Storage Temperature Range:–65 to +150℃.
Features
AD7875KN features: (1)Complete Monolithic 12-Bit ADC with: 2 ms Track/Hold Amplifier; 8 ms A/D Converter; (2)On-Chip Reference; (3)Laser-Trimmed Clock; (4)Parallel, Byte and Serial Digital Interface; (5)72 dB SNR at 10 kHz Input Frequency; (6)57 ns Data Access Time; (7)Low Power: –60 mW typ; (8)Variety of Input Ranges.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 AD7875KN |
|
IC ADC 12BIT LC2MOS 100KHZ 24DIP |
Data Sheet |
|
|
||||||||||||||
|
AD7875KNZ |
|
IC ADC 12BIT LC2MOS 100KHZ 24DIP |
Data Sheet |
|
|
||||||||||||||
