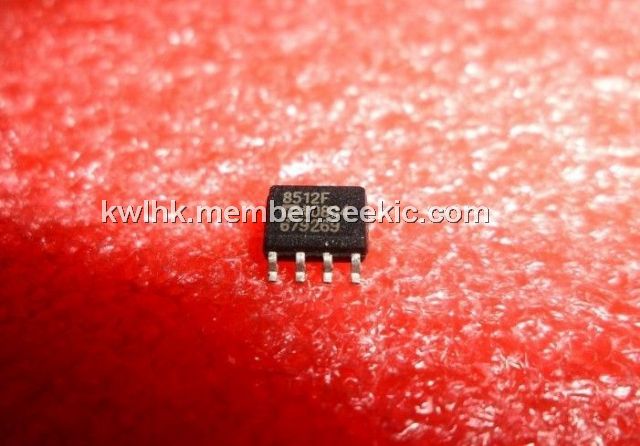

Product Summary

The AD8512F is a quad-precision JFET amplifier that features low offset voltage, input bias current, input voltage noise, and input current noise. The combination of low offsets, low noise, and very low input bias currents makes the amplifier especially suitable for high impedance sensor amplification and precise current measure-ments using shunts. The applications of the AD8512F include instrumentation, multipole filters, precision current measurement, photodiode amplifiers, sensors, audio.

Parametrics

AD8512F absolute maximum ratings: (1)Supply voltage: ±18 V; (2)Input voltage: ±VS; (3)Output short-circuit duration to GND: observe derating curves; (4)Storage temperature range R, RM Packages: -65℃ to +150℃; (5)Operating temperature range: -40℃ to +125℃; (6)Junction temperature range R, RM packages: -65℃ to +150℃; (7)Lead temperature range (soldering, 10 sec): 300℃; (8)Electrostatic discharge (HBM): 2000 V.

Features

AD8512F features: (1)Fast settling time: 500 ns to 0.1%; (2)Low offset voltage: 400 μV max; (3)Low TCVOS: 1 μV/℃ typ; (4)Low input bias current: 25 pA typ; (5)Dual-supply operation: ±5 V to ±15 V; (6)Low noise: 8 nV/√￣Hz; (7)Low distortion: 0.0005%; (8)No phase reversal; (9)Unity gain stable.

Diagrams

AD8512F circuit diagram
