Product Summary

The ADM208EANZ is a line driver/receiver. It is intended for all EIA-232-E and V.28 communications interfaces, especially in applications where ±12 V is not available. The ADM208ANZ features a low power shutdown mode which reduces power dissipation to less than 5 μW making them ideally suited for battery powered equipment. It does not require any external components and is particularly useful in applications where printed circuit board space is critical. The ADM208EANZ has an active-low shutdown and an active-high receiver enable control. The applications of the ADM208EANZ include Computers, Peripherals, Modems, Printers, Instruments.

Parametrics

ADM208EANZ absolute maximum ratings: (1)VCC: –0.3 V to +6 V; (2)V+: (VCC – 0.3 V) to +14 V; (3)V–:. +0.3 V to –14 V; (4)Input Voltages: TIN: –0.3 V to (VCC + 0.3 V), RIN: ±30 V; (5)Output Voltages: TOUT: (V+, + 0.3 V) to (V–, –0.3 V), ROUT: –0.3 V to (VCC + 0.3 V); (6)Short Circuit Duration TOUT: Continuous Power Dissipation.

Features

ADM208EANZ features: (1)0.1 μF to 10 μF Capacitors; (2)120 kB/s Data Rate; (3)On-Board DC-DC Converters; (4)±9 V Output Swing with +5 V Supply; (5)Low Power (15 mW); (6)Low Power Shutdown ≤5 μW; (7)±30 V Receiver Input Levels; (8)Latch-Up FREE; (9)Plug-In Upgrade for MAX205-211/213.

Diagrams

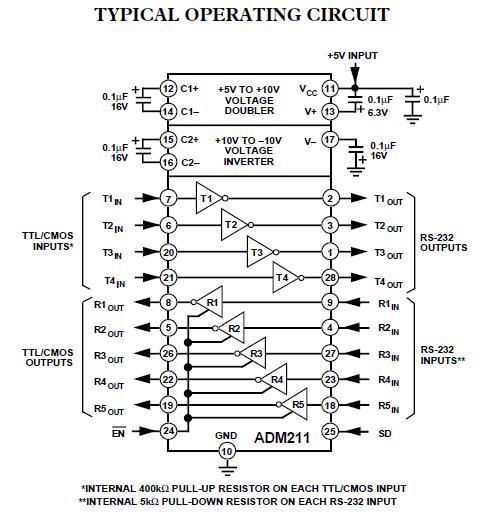

ADM208EANZ block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

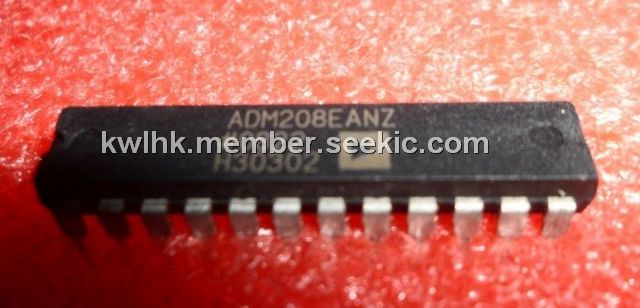

ADM208EANZ
ADM208EANZ


IC TXRX RS-232 5V 0.1UF 24DIP

Data Sheet

0-1: $2.24
1-10: $2.00
10-100: $1.64
100-250: $1.48
250-500: $1.33
500-1000: $1.12
1000-2500: $1.07
