MAX1230BCEG

12-Bit, 300ksps, ADC with FIFO, Temp Sensor, Internal Reference, 10MHz 3-Wire Interface

Rated 5 Rating 5 | reviews | Write a review

Price:: US $10.00~15.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $10.00~15.00

PartNumber:: MAX1230BCEG

Brand:: Maxim Integrated Products - Maxim | Pack: DIP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. harry's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-08-15

From Other Seller

Part Number:MAX1230BCEG
US $10.00 - 15.00
EKXG401ELL6R8MJ16S

US $5.00 - 5.00 / Piece
(0) Remove
YL-G709

US $65.00 - 68.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

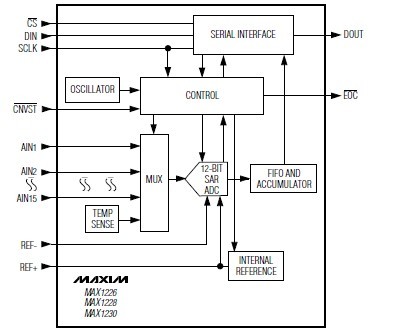

The MAX1230BCEG is a 12-bit analog-to-digital converter (ADC) with an internal reference and an internal temperature sensor. These devices feature on-chip FIFO, scan mode, internal clock mode, internal averaging, and AutoShutdown. The maximum sampling rate is 300ksps using an external clock. The MAX1230BCEG has 16 input channels. All input channels are configurable for single-ended or differential inputs in unipolar or bipolar mode. The MAX1230BCEG operates from a +5V supply and contain a 10MHz SPI./QSPI./MICROWIRE.-compatible serial port. The MAX1230BCEG is available in 28-pin 5mm x 5mm thin QFN with exposed pad and 24-pin QSOP packages. The MAX1230BCEG is specified over the extended -40℃ to +85℃ temperature range.

Parametrics

MAX1230BCEG absolute maximum ratings: (1)VDD to GND: -0.3V to +6V; (2)CS, SCLK, DIN, EOC, DOUT to GND: -0.3V to (VDD + 0.3V); (3)AIN0-AIN13, REF-/AIN , CNVST/AIN , REF+ to GND: -0.3V to (VDD + 0.3V); (4)Maximum Current into Any Pin: 50mA; (5)Continuous Power Dissipation (TA = +70℃): 16-Pin QSOP (derate 8.3mW/℃ above +70℃): 667mW; 20-Pin QSOP (derate 9.1mW/℃ above +70℃): 727mW; 24-Pin QSOP (derate 9.5mW/℃ above +70℃): 762mW; 28-Pin Thin QFN 5mm x 5mm(derate 20.8mW/℃ above +70℃): 1667mW; (6)Operating Temperature Ranges: MAX12 C : 0℃ to +70℃; MAX12 E : -40℃ to +85℃; (7)Storage Temperature Range: -60℃ to +150℃; (8)Junction Temperature: +150℃; (9)Lead Temperature (soldering, 10s): +300℃.

Features

MAX1230BCEG features: (1)Internal Temperature Sensor (±1℃ Accuracy); (2)16-Entry First-In/First-Out (FIFO); (3)Accuracy: ±1 LSB INL, ±1 LSB DNL, No Missing Codes Over Temperature; (4)Scan Mode, Internal Averaging, and Internal Clock; (5)Low-Power Single +5V Operation: 1.9mA at 300ksps; (6)Internal 4.096V Reference or External Differential Reference; (7)10MHz 3-Wire SPI/QSPI/MICROWIRE-Compatible Interface; (8)Space-Saving 28-Pin 5mm x 5mm Thin QFN Package.
