Product Summary

The ADM211EARSZ is a line drivers/receiver. It can be used in (1)laptop computers; (2)notebook computers; (3)printers; (4)peripherals; (5)modems. The level of emissions and immunity are both in compliance. EM immunity includes ESD protection in excess of ±15 kV on all I/O lines (IEC 1000-4-2), fast transient burst protection (IEC 100044), and radiated immunity (IEC 1000-4-3). EM emissions include radiated and conducted emissions as required by Information Technology Equipment EN 55022, CISPR 22.

Parametrics

ADM211EARSZ absolute maximum ratings: (1)VCC: -0.3 V to +6 V; (2)V+: (VCC-0.3 V) to +14 V; (3)V–:+0.3 V to +14 V; (4)Input Voltages TIN: -0.3 V to (V+ + 0.3 V); (5)Operating Temperature Range (Ambient):–40°C to +85°C; (6)Storage Temperature Range:–65°C to +150°C; (7)Lead Temperature (5 sec): +300°C.

Features

ADM211EARSZ features: (1)Complies with 89/336/EEC EMC directive; (2)ESD protection to IEC 1000-4-2 (801-2); (3)Contact discharge: +/-8 kV; (4)Air-gap discharge: +/-15 kV; (5)Human body model: +/-15 kV; (6)EFT/burst immunity (IEC 1000-4-4); (7)Low EMI emissions (EN 55022); (8)Eliminates need for TransZorb?suppressors; (9)230 kbps data rate guaranteed; (10)Single 5 V power supply; (11)Shutdown mode 1μ; (12)Space saving TSSOP package available.

Diagrams

ADM211EARSZ pin connection

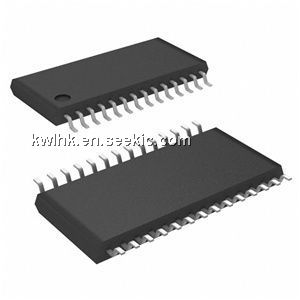

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
ADM211EARSZ
ADM211EARSZ

IC TX/RX RS-232 5V 0.1UF 28SSOP
Data Sheet
0-1: $2.24
1-10: $2.00
10-100: $1.64
100-250: $1.48
250-500: $1.33
500-1000: $1.12
1000-2500: $1.07
ADM211EARSZ-REEL
ADM211EARSZ-REEL

IC TXRX RS-232 5V 0.1UF 28SSOP
Data Sheet
0-1500: $1.12
