Product Summary

The ADV101KP30 is a digital-to-analog video converter on a single monolithic chip. The part is specifically designed for high resolution color graphics and video systems. The ADV101KP30 consists of three, high speed, 8-bit, video D/A converters (RGB); a standard TTL input interface and high impedance, analog output, current sources. The ADV101KP30 has three separate, 8-bit, pixel input ports, one each for red, green and blue video data. Additional video input controls on the part include sync, blank and reference white. A single +5 V supply, an external 1.23 V reference and pixel clock input are all that are required to make the part operational. Applications; (3)Image Processing; (4)Instrumentation; (5)Video Signal Reconstruction; (6)Desktop Publishing.

Parametrics

ADV101KP30 absolute maximum ratings: (1)VAA to GND: 7 V; (2)Voltage on Any Digital Pin GND: -0.5 V to VAA + 0.5 V; (3)Ambient Operating Temperature (TA): 0°C to +70°C; (4)Storage Temperature (TS): -65°C to +150°C; (5)Junction Temperature (TJ): +150°C; (6)Soldering Temperature (10 secs): 300°C; (7)Vapor Phase Soldering (1 minute): 220°C; (8)IOR, IOB, IOG, ISYNC to GND2: 0 V to VAA.

Features

ADV101KP30 features: (1)80 MHz Pipelined Operation; (2)Triple 8-Bit D/A Converters; (3)RS-343A/RS-170 Compatible Outputs; (4)TTL Compatible Inputs; (5)+5 V CMOS Monolithic Construction; (6)40-Pin DIP or 44-Pin PLCC Package; (7)Plug-In Replacement for BT101; (8)Power Dissipation: 400 mW.

Diagrams

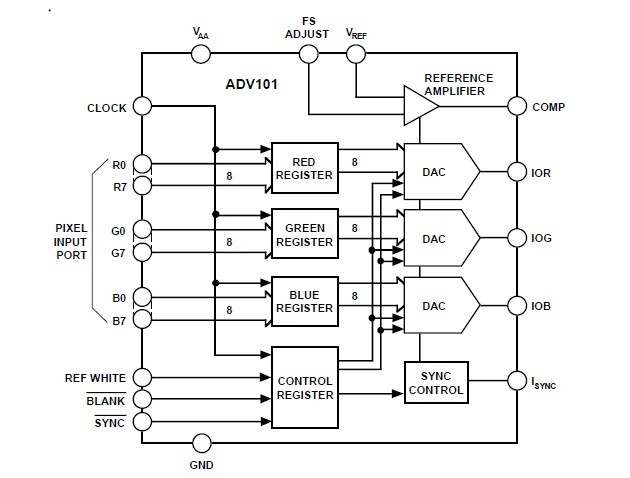

ADV101KP30 pin connection
