Product Summary
The AK4393VF is a high performance stereo DAC for the 96kHz sampling mode of DAT, DVD including a 24bit digital filter. The AK4393VF introduces the advanced multi-bit system for DS modulator. This new architecture achieves the wider dynamic range, while keeping much the same superior distortion characteristics as conventional Single-Bit way.
Parametrics
AK4393VF absolute maximum ratings: (1)Power Supplies: -0.3 to 6.0V; (2)Input Current , Any pin Except Supplies IIN: ±10 mA; (3)Input Voltage VIND: -0.3 to DVDD+0.3 V; (4)Ambient Operating Temperature Ta: -40 to 85 °C; (5)Storage Temperature Tstg: -65 to 150 °C.
Features
AK4393VF features: (1)128x Oversampling; (2)Sampling Rate up to 108kHz; (3)24Bit 8x Digital Filter Ripple: ±0.005dB, Attenuation: 75dB; (4)High Tolerance to Clock Jitter; (5)Low Distortion Differential Output; (6)Digital de-emphasis for 32, 44.1, 48 & 96kHz sampling; (7)Soft Mute; (8)THD+N: -100dB; (9)DR, S/N: 120dB; (10)I/F format : M.

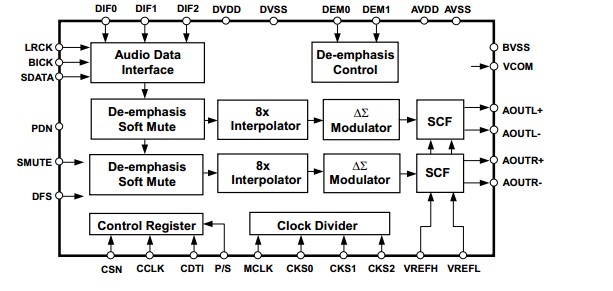

Diagrams
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
![]() AK4393VFP-E2 |
![]() |
![]() IC DAC 24BIT 28VSOP |
![]() Data Sheet |
![]()
|
|
||||||||||||||
