Product Summary
The AK5394AVS is a 24bit, 192kHz sampling 2ch A/D Converter for professional digital audio systems. The modulator in the AK5394AVS uses the new developed advanced multi bit architecture. This new architecture achieves the wide dynamic range and wide bandwidth, while keeping superior distortion characteristics. The AK5394AVS performs 123dB dynamic range, so the device is suitable for professional studio equipment such as digital mixer, digital VTR etc. The operating voltages support analog 5V and digital 3.3V, so it is easy to I/F with 3.3V logic IC.
Parametrics
AK5394AVS absolute maximum ratings: (1)Power Supplies: Analog: -0.3 to 6.0V, Digital: -0.3 to 6.0V, |BGND-DGND|: 0.3V; (2)Input Current, Any Pin Except Supplies IIN: ±10 mA; (3)Analog Input Voltage VINA: -0.3 to VA+0.3 V; (4)Digital Input Voltage VIND: -0.3 to VD+0.3 V; (5)Ambient Temperature (power applied)Ta: -10 to 70 °C; (6)Storage Temperature Tstg: -65 to 150 °C.
Features
AK5394AVS features: (1)128x Oversampling; (2)New advanced multi bit Architecture ADC; (3)Sampling Rate: 1kHz ∼ 216kHz; (4)Full Differential Inputs; (5)S/(N+D): 110dB; (6)DR: 123dB; (7)S/N: 123dB; (8)High Performance Linear Phase Digital Anti-Alias filter.

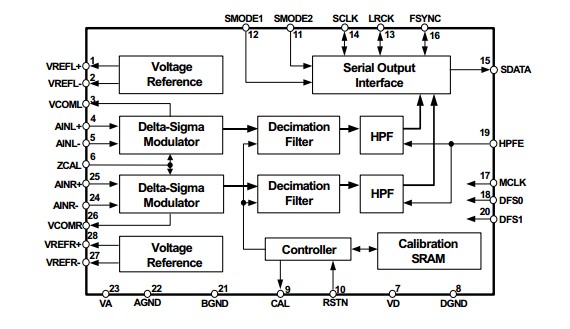

Diagrams
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |

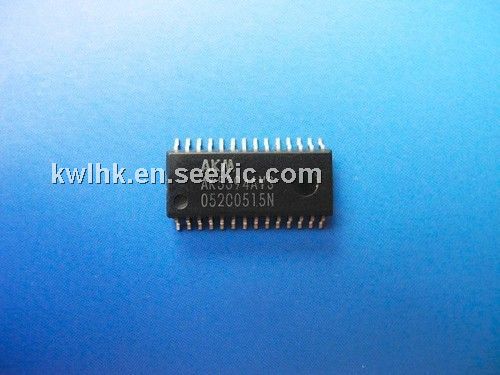

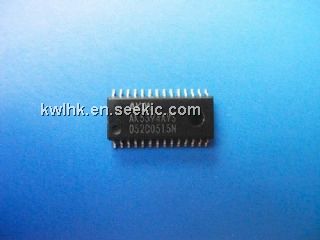

![]() AK5394AVSP-E2 |
![]() |
![]() IC ADC AUDIO STER 24BIT 28VSOP |
![]() Data Sheet |
![]()
|
|
||||||||||||||||||||||
