Product Summary
The AM27C040-120DC is a 4 Mbit ultraviolet erasable programmable read-only memory. It is organized as 512Kbytes, operates from a single +5 V supply, has a static standby mode, and features fast single address location programming. The AM27C040-120DC is available in windowed ceramic DIP packages and plastic one-time program-mable (OTP) packages.
Parametrics
AM27C040-120DC absolute maximum ratings: (1)Storage Temperature: –65 to +150℃; (2)Ambient Temperature with Power Applied:–55 to + 125℃; (3)Voltage with Respect to VSS, All pins except A9, VPP, VCC:–0.6 V to VCC +0.5 V; A9 and VPP:–0.6 V to +13.5 V; (4)VCC: –0.6 V to +7.0 V.
Features
AM27C040-120DC features: (1)Fast access time; (2)Low power consumption; (3)JEDEC-approved pinout; (4)Single +5 V power supply; (5)±10% power supply tolerance standard; (6)100% Flashrite programming; (7)Latch-up protected to 100 mA from –1 V to VCC + 1 V; (8)High noise immunity; (9)Compact 32-pin DIP, PDIP, PLCC packages.

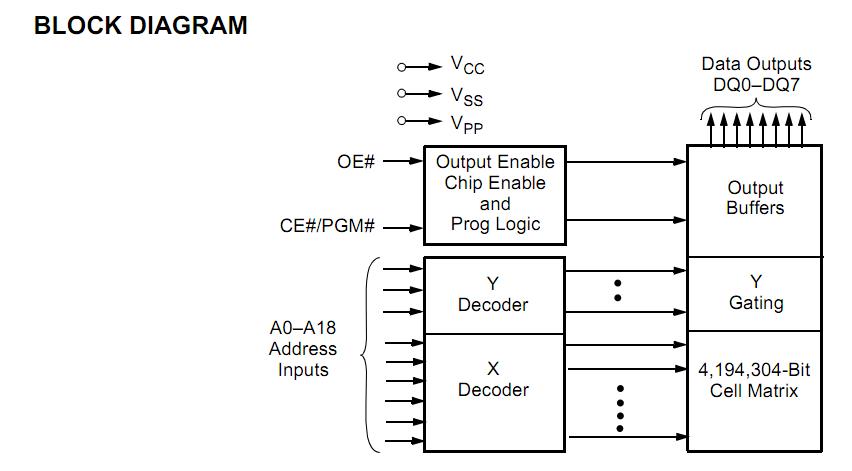

Diagrams
 |
