Product Summary
The AM29F010B-70JC is a 1 Mbit, 5.0 Volt-only Flash memory organized as 131,072 bytes. The AM29F010B-70JC is offered in 32-pin PDIP, PLCC and TSOP packages. The byte-wide data appears on DQ0-DQ7. The AM29F010B-70JC is designed to be programmed in-system with the standard system 5.0 Volt VCC supply. A 12.0 volt VPP is not required for program or erase operations. The device can also be programmed or erased in standard EPROM programmers. This device is manufactured using AMD 0.32 μm process technology, and offers all the features and benefits of the Am29F010 and Am29F010A. The standard device of the AM29F010B-70JC offers access times of 45, 55, 70, 90, and 120 ns, allowing high-speed microprocessors to operate without wait states. To eliminate bus contention the device has separate chip enable (CE#), write enable (WE#) and output enable (OE#) controls. The device requires only a single 5.0 volt power supply for both read and write functions. Internally generated and regulated voltages are provided for the program and erase operations.
Parametrics
AM29F010B-70JC absolute maximum ratings: (1)Storage Temperature Plastic Packages: –65℃ to +125℃; (2)Ambient Temperature with Power Applied: –55℃ to +125℃; (3)Voltage with Respect to Ground VCC: –2.0 V to +7.0 V; (4)A9: –2.0 V to +13.0 V; (5)All other pins: –2.0 V to +7.0 V; (6)Output Short Circuit Current: 200 mA.
Features
AM29F010B-70JC features: (1)Single power supply operation; (2)Manufactured on 0.32 μm process technology; (3)High performance; (4)Low power consumption; (5)Flexible sector architecture; (6)Sector protection; (7)Embedded Algorithms; (8)Erase Suspend/Resume; (9)Minimum 1 million erase cycles guaranteed per sector; (10)20-year data retention at 125℃; (11)Compatible with JEDEC standards.

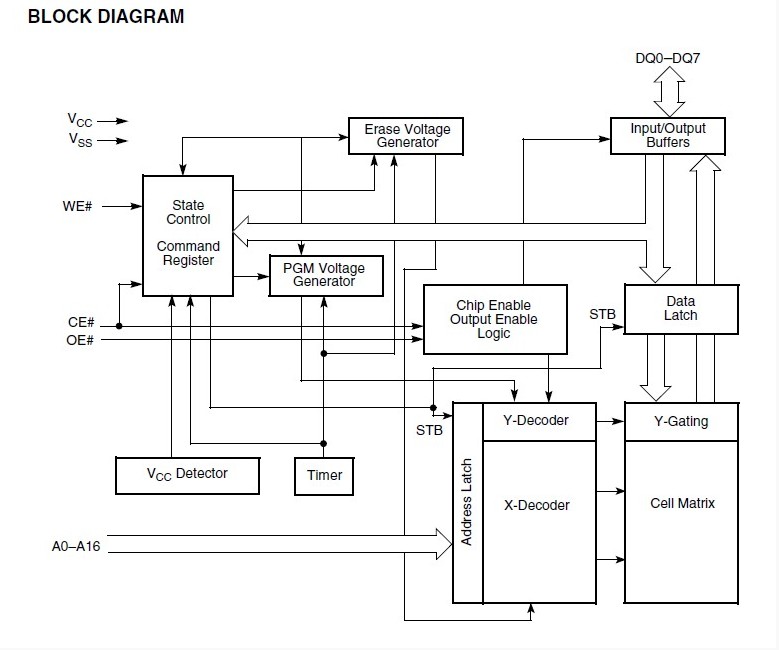

Diagrams
