Product Summary

The MAX312CPE is an analog switch. It features low on-resistance (10Ω max) and 1.5Ω on-resistance matching between channels. The switch conducts equally well in either direction. The MAX312CPE offers low leakage over temperature (2.5nA at +85℃). Low power consumption and ESD tolerance greater than 2000V per Method 3015.7 are guaranteed. The applications of the MAX312CPE include Test Equipment, Communication Systems, PBX, PABX Systems Audio Signal Routing, Avionics, Sample-and-Hold Circuits and Data Acquisition Systems.

Parametrics

MAX312CPE absolute maximum ratings: (1)Voltages Referenced to GND, V+: -0.3V to +44V; V-: +0.3V to -44V; V+ to V-: -0.3V to +44V; VL: (GND - 0.3V) to (V+ + 0.3V); (2)All Other Pins: (V- - 2V) to (V+ + 2V) or 30mA (whichever occurs first); (3)Continuous Current (COM_, NO_, NC_): ±100mA; (4)Peak Current (COM_, NO_, NC_): ±300mA; (5)Continuous Power Dissipation: 842mW; (6)Operating Temperature Ranges: 0 to +70℃; (7)Storage Temperature Range: -65 to +150℃; (8)Lead Temperature (soldering, 10sec): +300℃.

Features

MAX312CPE features: (1)Pin Compatible with DG411/DG412/DG413; (2)Low On-Resistance; (3)Guaranteed RON Match Between Channels; (4)Guaranteed RON Flatness over Specified Signal Range; (5)Guaranteed ESD Protection > 2000V per Method 3015.7; (6)Crosstalk > 96dB at 20kHz; (7)Single-Supply Operation: +4.5V to +30V Dual-Supply Operation: ±4.5V to ±20V; (8)Rail-to-Rail Signal Handling.

Diagrams

MAX312CPE pin configuration

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

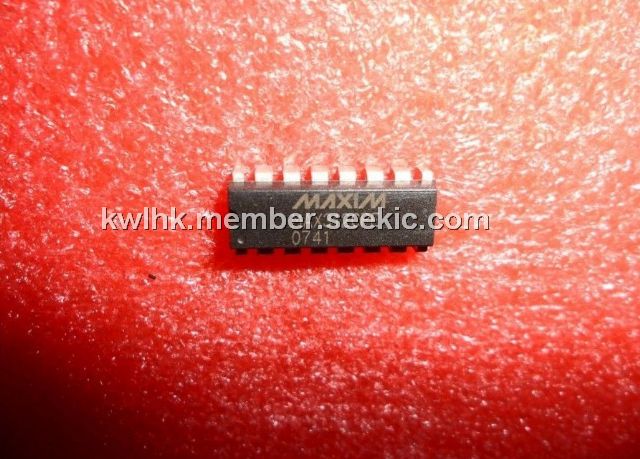

MAX312CPE
MAX312CPE

Maxim Integrated Products

Analog Switch ICs

Data Sheet

Negotiable
MAX312CPE+
MAX312CPE+

Maxim Integrated Products

Analog Switch ICs 10Ohm Quad SPST CMOS

Data Sheet

0-1: $5.74
1-25: $3.85
25-50: $2.79
50-100: $2.75
