Product Summary

The AM29F080B-70EC is an 8 Mbit, 5.0 volt-only Flash memory organized as 1,048,576 bytes. The 8 bits of data appear on DQ0-DQ7. The AM29F080B-70EC is offered in 40-pin TSOP and 44-pin SO packages. This device is designed to be programmed in-system with the standard system 5.0 volt VCC supply. A 12.0 volt VPP is not required for program or erase operations. The AM29F080B-70EC can also be programmed in standard EPROM programmers.

Parametrics

AM29F080B-70EC absolute maximum ratings: (1)Storage Temperature: –65°C to +125°C; (2)Ambient Temperature: –55°C to +125°C; (3)Voltage with Respect to Ground: –2.0 V to +7.0 V; (4)A9, OE#, RESET#: –2.0 V to +12.5 V; (5)All other pins: –2.0 V to +7.0 V; (6)Output Short Circuit Current: 200 mA.

Features

AM29F080B-70EC features: (1)16 uniform sectors of 64 Kbytes each; (2)Any combination of sectors can be erased; (3)Supports full chip erase; (4)25 mA typical active read current; (5)30 mA typical program/erase current; (6)1 μA typical standby current (standard access time to active mode).

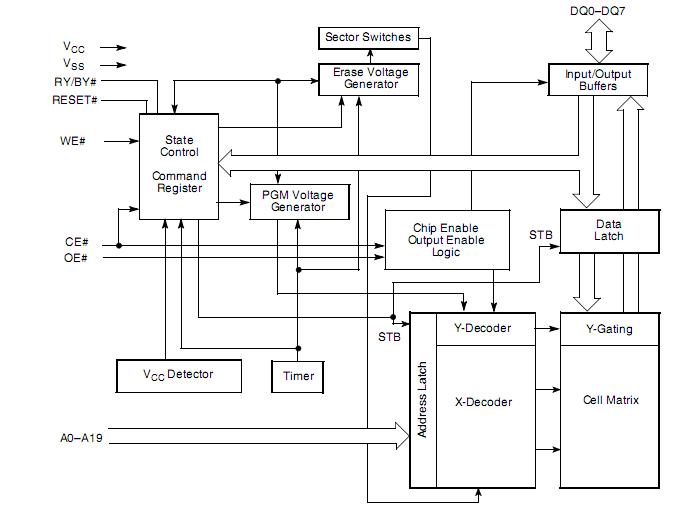

Diagrams

AM29F080B-70EC pin connection
