AM29LV033C-90EI

AM29LV033C-90EI, Flash memory, 200 mA, 12.5 V, TSOP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $5.12~5.45 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
100 ~ 500 :	5.45 / Piece
500 ~ 1000 :	5.30 / Piece
1000 ~ 1500 :	5.12 / Piece

PartNumber:: AM29LV033C-90EI

Brand:: Advanced Micro Devices - AMD | Pack: TSOP | D/C: 02+

Availability:: Supply Ability: 10000/Month Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Mr. harry's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-09-22

From Other Seller

Part Number:AM29LV033C-90EI
US $5.12 - 5.45
Quantity:

piece

Product Summary

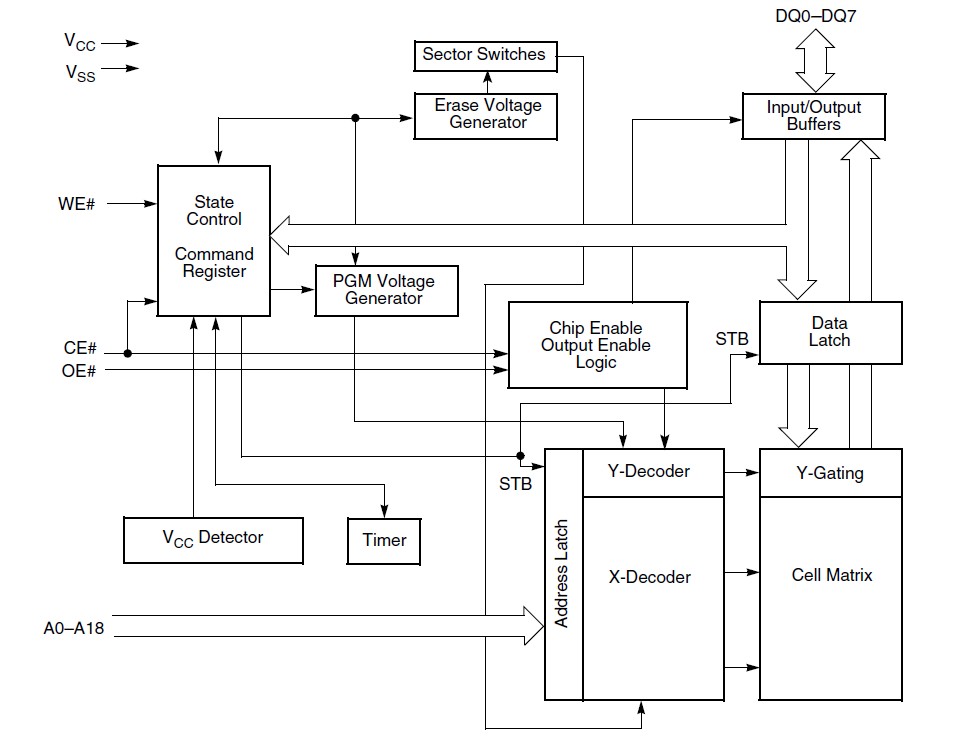

The AM29LV033C-90EI is a 32 Mbit, 3.0 Volt-only Flash memory organized as 4,194,304 bytes. The AM29LV033C-90EI is offered in 63-ball FBGA and 40-pin TSOP packages. The byte-wide (x8) data appears on DQ7–DQ0. All read, program, and erase operations are accomplished using only a single power supply. The device can also be programmed in standard EPROM programmers.The AM29LV033C-90EI requires only a single 3.0 volt power supply for both read and write functions. Internally generated and regulated voltages are provided for the program and erase operations. The AM29LV033C-90EI is entirely command set compatible with the JEDEC single-power-supply Flash standard. Commands are written to the command register using standard microprocessor write timings. Register contents serve as input to an internal state-machine that controls the erase and programming circuitry. Write cycles also internally latch addresses and data needed for the programming and erase operations. Reading data out of the device is similar to reading from other Flash or EPROM devices.

Parametrics

AM29LV033C-90EI absolute maximum ratings: (1)Storage Temperature: –65 to +150℃; (2)Ambient Temperature with Power Applied: –65 to +125℃; (3)Voltage with Respect to Ground, VCC: –0.5 V to +4.0 V; A9, OE#, and RESET#:–0.5 V to +12.5 V; All other pins: –0.5 V to VCC+0.5 V; (4)Output Short Circuit Current: 200 mA.

Features

AM29LV033C-90EI features: (1)Reduces overall programming time wheissuing multiple program command sequences; (2)Provides a software method of detecting the status of program or erase cycles; (3)Full voltage range: 2.7 to 3.6 volt read and write operations for battery-powered applications; (4)Regulated voltage range: 3.0 to 3.6 volt read and write operations and for compatibility with high performance 3.3 volt microprocessors; (5)Sophisticated power management circuits reduce power consumed during inactive periods to nearly zero; (6)Any combinatioof sectors cabe erased; (7)Ready/Busy# output (RY/BY#); (8)Hardware reset pi(RESET#); (9)ACC input pin; (10)Sector protection; (11)Command sequence optimized for mass storage.
