Product Summary

The MAX627CPA is a dual monolithic power MOSFET driver. It is designed to translate TTL inputs to high voltage/current outputs. The MAX627CPA is a dual inverting power MOSFET driver. Delay times are nearly independent of VDD. High current output drivers rapidly charge and discharge the gate capacitance of even the largest power MOSFETs to whith millivolts of the supply rail. The applications of the MAX627CPA are switching power supplies, DC-DC converters, motor controllers, pin diode drivers, charge pump voltage inverters.

Parametrics

MAX627CPA absolute maximum ratings: (1)supply voltage VDD to GND:+20V; (2)input voltage: VDD+0.3V to GND-0.3V; (3)package dissipation:500mW; (4)maximum chip temperature:+150℃; (5)storage temperature:-55 to +160℃; (6)lead temperature(10 second):+300℃.

Features

MAX627CPA features: (1)improved second source for TSC426/7/8; (2)fast rise and fall times: typically 20ns with 1000pF load; (3)wide supply range: VDD=4.5 to 18volts; (4)low power consumption:7mW with inputs low, 150mW with input high; (5)TTL/CMOS input compatible; (6)low ROUT: typically 4Ω.

Diagrams

MAX627CPA pin configuration

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

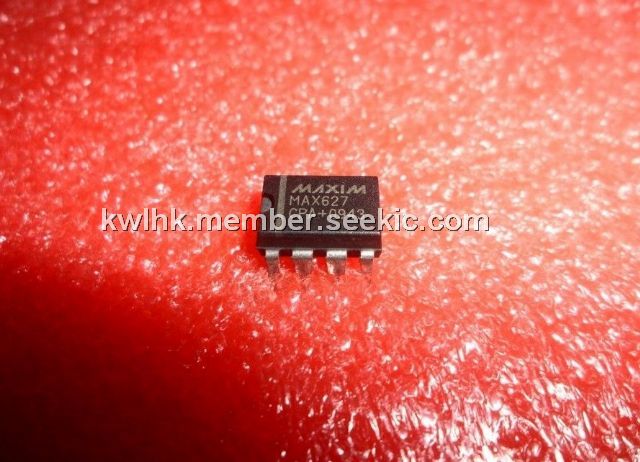

MAX627CPA
