Product Summary

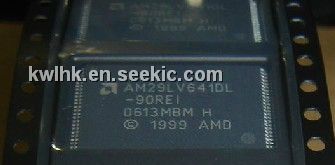

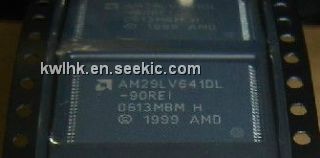

The AM29LV641DL-90REI is a 64 Mbit, 3.0 Volt (3.0 V to 3.6 V) single power supply flash memory device organized as 4,194,304 words. Data appears on DQ0-DQ15. The device is designed to be programmed in-system with the standard system 3.0 volt VCC supply. A 12.0 volt VPP is not required for program or erase operations. The AM29LV641DL-90REI can also be programmed in standard EPROM programmers. Access times of 90 and 120 ns are available for applications where VIO ≥ VCC.
Parametrics
AM29LV641DL-90REI absolute maximum ratings: (1)Storage Temperature Plastic Packages: -65℃ to +150℃; (2)Ambient Temperature with Power Applied: -65℃ to +125℃; (3)Voltage with Respect to Ground VCC (Note 1): -0.5 V to +4.0 V; VIO: -0.5 V to +5.5 V; (4)A9, OE#, ACC, and RESET#: -0.5 V to +12.5 V; (5)All other pins: -0.5 V to VCC +0.5 V; (6)Output Short Circuit Current: 200 mA.
Features
AM29LV641DL-90REI features: (1)Single power supply operation, 3.0 to 3.6 volt read, erase, and program operations; (2)VersatileIO. control, Device generates output voltages and tolerates data input voltages on the DQ input/ouputs as determined by the voltage on VIO; (3)High performance, Access times as fast as 90 ns; (4)Manufactured on 0.23 μm process technology; (5)CFI (Common Flash Interface) compliant, Provides device-specific information to the system, allowing host software to easily reconfigure for different Flash devices; (6)SecSi (Secured Silicon) Sector region, 128-word sector for permanent, secure identification through an 8-word random Electronic Serial Number; May be programmed and locked at the factory or by the customer; Accessible through a command sequence; (7)Ultra low power consumption (typical values at 3.0 V, 5 MHz), 9 mA typical active read current; 26 mA typical erase/program current; 200 nA typical standby mode current; (8)Flexible sector architecture, One hundred twenty-eight 32 Kword sectors; (9)Sector Protection, A hardware method to lock a sector to prevent; (10)program or erase operations within that sector; Sectors can be locked in-system or via programming equipment; Temporary Sector Unprotect feature allows code changes in previously locked sectors.
Diagrams
