Product Summary
The AM29LV641ML-101REI is a 64 Mbit, 3.0 Volt (3.0 V to 3.6 V) single power supply flash memory device organized as 4,194,304 words. Data appears on DQ0-DQ15. The AM29LV641ML-101REI is designed to be programmed in-system with the standard system 3.0 volt VCC supply. A 12.0 volt VPP is not required for program or erase operations. The AM29LV641ML-101REI can also be programmed in standard EPROM programmers. Access times of 90 and 120 ns are available for applications where VIO ≥ VCC.
Parametrics
AM29LV641ML-101REI absolute maximum ratings: (1)Storage Temperature Plastic Packages: -65℃ to +150℃; (2)Ambient Temperature with Power Applied: -65℃ to +125℃; (3)Voltage with Respect to Ground VCC (Note 1): -0.5 V to +4.0 V; VIO: -0.5 V to +5.5 V; (4)A9, OE#, ACC, and RESET#: -0.5 V to +12.5 V; (5)All other pins: -0.5 V to VCC +0.5 V; (6)Output Short Circuit Current: 200 mA.
Features
AM29LV641ML-101REI features: (1)Single power supply operation; (2)Manufactured on 0.23 μm MirrorBit process technology; (3)SecSi (Secured Silicon)Sector region; (4)Minimum 100,000 erase cycle guarantee per sector; (5)20-year data retention at 125°C; (6)Program Suspend & Resume: read other sectors before programming operation is completed; (7)Erase Suspend & Resume: read/program other sectors before an erase operation is completed; (8)Data# polling & toggle bits provide status; (9)Unlock Bypass Program command reduces overall multiple-word programming time; (10)CFI (Common Flash Interface)compliant: allows host system to identify and accommodate multiple flash devices.

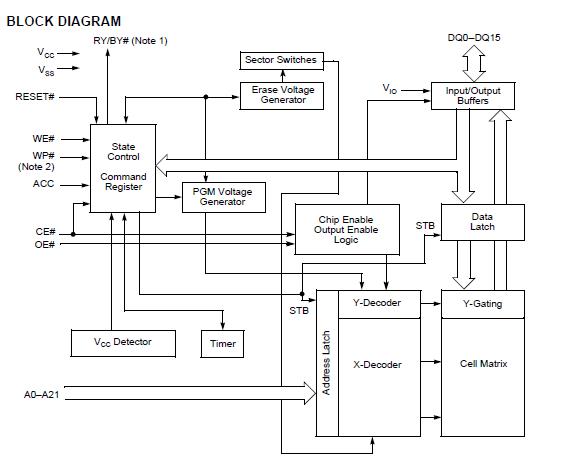

Diagrams
