Product Summary
The AN5312 is a color TV video and chrominance signal processing circuit.
Parametrics
AN5312 absolute maximum ratings: (1)VCC: 14.4V; (2)V12-7: 0 to 14.4V; (3)V1,2,8,9,21-7: 0 to V12-7 V; (4)V10-17: -5 to V12-7 V; (5)I17: -20 to 5mA; (6)I18,19,20: -40mA; (7)PD: 950mW; (8)Topr: -20 to 70℃; (9)Tstg: -55 to +150℃.
Features

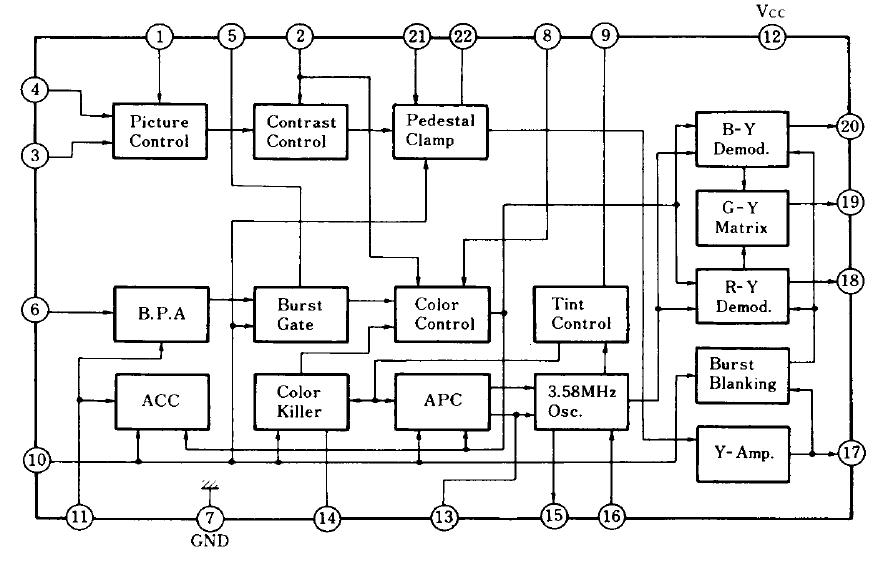

AN5312 features: (1)The AN5312 provides total video and chrominance signal processing circuitry, allows compact set design at 22-lead package; (2)Output signals provides R-Y, G-Y and B-Y color difference output and luminance output; (3)All DC control system for simplicity of wiring.
