Product Summary

The AQW214EH is a GU (general use)-E type 2-channel (form A) type photoMos relay. Applications of the AQW214EH include: modem, telephone equipment, security equipment and sensors.

Parametrics

AQW214EH absolute maximum ratings: (1) LED forward current IF: 50mA; (2) LED reverse voltage VR: 3V; (3) Peak forward current IFP: 1A (f=100Hz, duty factor=0.1%) ; (4) Power dissipation Pin: 75mW; (5) Load voltage (peak AC) VL: 400V; (6) Continuous load current (peak AC) IL: 0.1A; (7) Peak load current Ipeak: 0.3A; (8) Power dissipation Pout: 800mW; (9) I/O isolation voltage Viso: 5000V; (10) Temperature limits: -40 to +85°C.

Features

AQW214EH features: (1) Reinforced insulation 5,000V type; (2) Compact 8-pin DIP size; (3) Applicable for 2 Form A use as well as two independent 1 Form A use; (4) Controls low-level analog signals; (5) High sensitivity, high speed response; (6) Low-level off state leakage current.

Diagrams

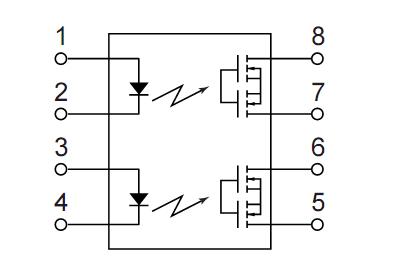

AQW214EH Circuit

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
AQW214EH
AQW214EH
Panasonic Electric Works
Solid State Relays 100MA 400V DPST
Data Sheet
0-1: $3.92
1-25: $3.60
25-50: $3.20
50-100: $2.79
AQW214EHA
AQW214EHA
Panasonic Electric Works
Solid State Relays 400v 100mA DIP Form A Norm-Open
Data Sheet
0-1: $3.80
1-25: $3.56
25-50: $3.20
50-100: $2.79
AQW214EHAX
AQW214EHAX
Panasonic Electric Works
Solid State Relays 400v 100mA DIP Form A Norm-Open
Data Sheet
0-1000: $2.38
1000-3000: $2.29
AQW214EHAZ
AQW214EHAZ
Panasonic Electric Works
Solid State Relays RELAY OPTO DPST 100MA 8 SMD
Data Sheet
0-1000: $2.38
1000-3000: $2.29
