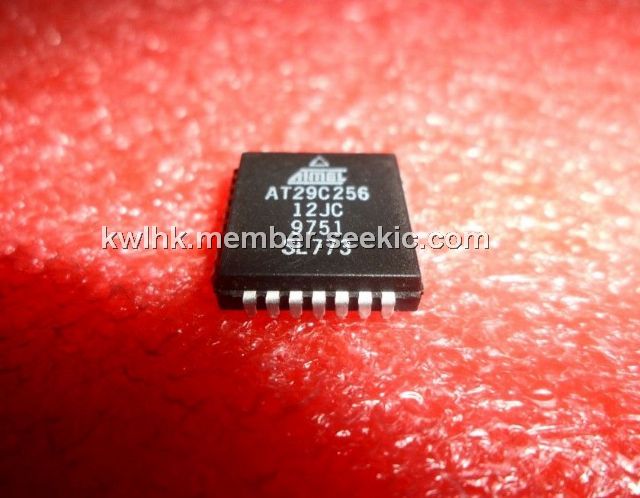

AT29C256-12JC

Internal Program Control, DIP, Low-power Dissipation, 5-volt Only Flash Memory, 256K

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.01~30.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.01~30.00

PartNumber:: AT29C256-12JC

Brand:: ATMEL Corporation - ATMEL | Pack: PLCC | D/C: 07+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. harry's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-05-10

From Other Seller

Part Number:AT29C256-12JC
US $0.01 - 30.00
AT45DB161D-SU

US $1.50 - 3.50 / Piece
(0) Remove
AT25256AW-10SU-2.7

US $0.65 - 1.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

The AT29C256-12JC is a five-volt-only in-system Flash programmable and erasable read only memory(PEROM). Its 256K of memory is organized as 32,768 words by 8 bits. Manufactured with Atmel’s advanced nonvolatile CMOS technology, the AT29C256-12JC offers access times to 70 ns with power dissipation of just 275 mW. When the device is deselected, the CMOS standby current is less than 300 μA. The AT29C256-12JC endurance is such that any sector can typically be written to in excess of 10,000 times. To allow for simple in system reprogrammability, the AT29C256-12JC does not require high input voltages for programming. Five-volt-only commands determine the operation of the device.

Parametrics

AT29C256-12JC absolute maximum ratings: (1)Temperature Under Bias:-55℃ to +125℃; (2)Storage Temperature:-65℃ to +150℃; (3)All Input Voltages (including NC Pins) with Respect to Ground:-0.6V to +6.25V; (4)All Output Voltages with Respect to Ground:-0.6V to VCC + 0.6V; (5)Voltage on OE with Respect to Ground:-0.6V to +13.5V.

Features

AT29C256-12JC features: (1)Fast Read Access Time:70 ns; (2)5-volt Only Reprogramming; (3)Page Program Operation:Single Cycle Reprogram (Erase and Program), Internal Address and Data Latches for 64 Bytes; (4)Internal Program Control and Timer; (5)Hardware and Software Data Protection; (6)Fast Program Cycle Times: Page (64 Byte) Program Time:10 ms, Chip Erase Time:10 ms; (7)DATA Polling for End of Program Detection ; (8)Low-power Dissipation:50 mA Active Current, 300 μA CMOS Standby Current; (9)Typical Endurance > 10,000 Cycles; (10)Single 5V ± 10% Supply; (11)CMOS and TTL Compatible Inputs and Outputs; (12)Commercial and Industrial Temperature Ranges.
