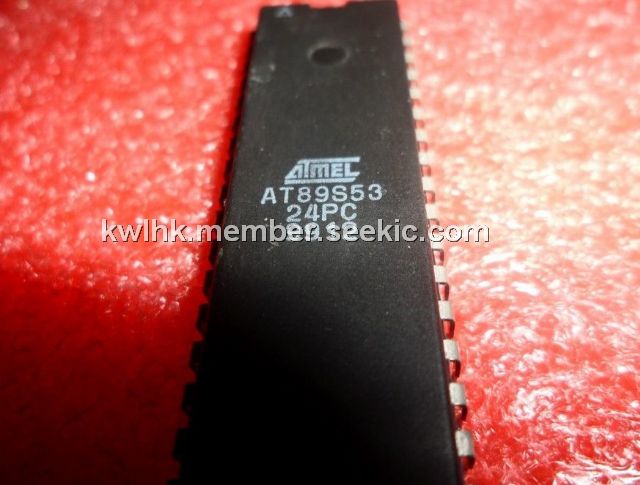

AT89S53-24PC

24MHZ, 40DIP, 15.0 mA, ATMEL, AT89S53-24PC, CMOS, 8-bit, microcomputer, 12K Bytes Flash

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.01~30.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.01~30.00

PartNumber:: AT89S53-24PC

Brand:: ATMEL Corporation - ATMEL | Pack: DIP | D/C: 09+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. harry's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-05-10

From Other Seller

Part Number:AT89S53-24PC
US $0.01 - 30.00
A50L-0001-0175

US $100.00 - 100.00 / Piece
(0) Remove
QM75DY-H

US $16.00 - 30.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The AT89S53-24PC is a low-power, high-performance CMOS 8-bit microcomputer with 12K bytes of Downloadable Flash programmable and erasable read only memory. The AT89S53-24PC is manufactured using Atmel high-density nonvolatile memory technology and is compatible with the industry-standard 80C51 instruction set and pinout. By combining a versatile 8-bit CPU with downloadable Flash on a monolithic chip, the Atmel AT89S53-24PC is a powerful microcomputer which provides a highly-flexible and cost-effective solution to many embedded control applications.

Parametrics

AT89S53-24PC absolute maximum ratings: (1)Operating Temperature: -55℃ to +125℃; (2)Storage Temperature: -65℃ to +150℃; (3)Voltage on Any Pin with Respect to Ground: -1.0V to +7.0V; (4)Maximum Operating Voltage: 6.6V; (5)DC Output Current: 15.0 mA.

Features

AT89S53-24PC features:(1)Compatible with MCS-51Products; (2)12K Bytes of In-System Reprogrammable Downloadable Flash Memory; (3)4.0V to 6V Operating Range; (4)Fully Static Operation: 0 Hz to 24 MHz; (5)Three-Level Program Memory Lock; (6)256 x 8-bit Internal RAM; (7)32 Programmable I/O Lines; (8)Three 16-bit Timer/Counters; (9)Nine Interrupt Sources; (10)Programmable UART Serial Channel; (11)SPI Serial Interface; (12)Low Power Idle and Power Down Modes; (13)Interrupt Recovery From Power Down; (14)Programmable Watchdog Timer; (15)Dual Data Pointer; (16)Power Off Flag.
