Product Summary
The AW-GH320 is a WLAN module IC. The AW-GH320 is targeted to mobile devices including Mobile Phones, Digital Still Cameras (DSCs), Portable Media Players (PMPs), Personal Digital Assistants (PDAs), and Gaming Devices which need small footprint package, low power consumption, multiple interfaces and OS support.
Parametrics
AW-GH320 absolute maximum ratings: (1)V30, Power supply voltage: 2.7 to 3.3 V; (2)VIH, Input high voltage: 1.0 to 1.2 V; (3)VIL, Input low voltage: 0.6 to 0.8 V; (4)VHYS, Input hysteresis: 250 mV; (5)VOH, Output high voltage: 2.3 V; (6)VOL, Output low voltage: 0.4 V; (7)IOH@2.97V-0.4V, Output high current: 4.5 to 13.5 mA; (8)IOL@0.4V Output, low current: 4.5 to 12 mA; (9)IOH@2.97V-0.6V, Switching current high: 5.5 to 20 mA; (10)IOL@0.6V, Switching current low: 5.5 to 18 mA.
Features
AW-GH320 features: (1)Small footprint: 9.6mm(L) x 9.6mm(W) x 1.3 mm(H); (2)SDIO, G-SPI interfaces support; (3)Bluetooth and Cellular phone co-existence support; (4)Multiple power saving modes for low power consumption; (5)IEEE 802.11i for advanced security; (6)Quality of Service (QoS) support for multimedia applications; (7)Multi OS support including WinCE, Linux, u-Itron, ThreadX; (8)Lead-free design.

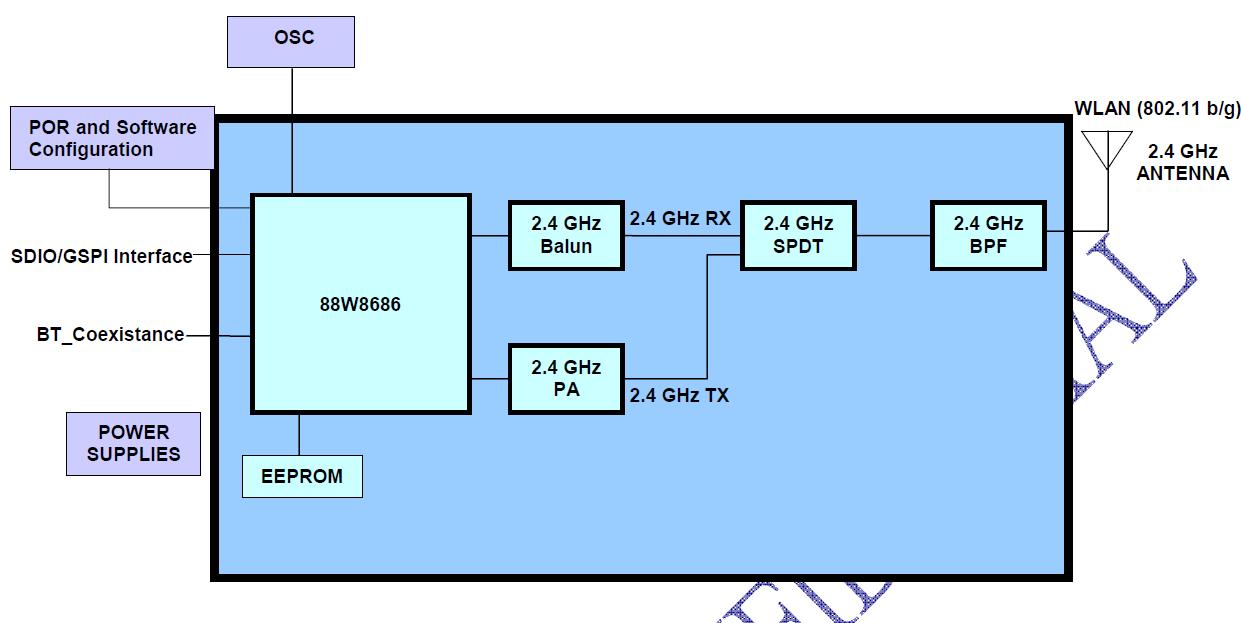

Diagrams
