Product Summary
The MAX500ACPE is a quad, 8-bit, voltage-output digital-to-analog converter (DAC) with a cascadable serial interface. The MAX500ACPE includes four output buffer amplifiers and input logic for an easy-to-use, two- or three-wire serial interface. In a system with several MAX500s, only one serial data line is required to load all the DACs by cascading them. The MAX500ACPE contains double-buffered logic and a 10-bit shift register that allows all four DACs to be updated simultaneously using one control signal. The applications of the MAX500ACPE are Minimum Component Count Analog Systems, Digital Offset/Gain Adjustment, Industrial Process Control, Arbitrary Function Generators, Automatic Test Equipment.
Parametrics
MAX500ACPE absolute maximum ratings: (1)VDD to AGND:-0.3V, +17V; (2)VDD to DGND:-0.3V, +17V; (3)VSS to DGND:-7V, (VDD + 0.3V); (4)VDD to VSS:-0.3V, +24V; (5)Digital Input Voltage to DGND:-0.3V, (VDD + 0.3V); (6)VREF to AGND:-0.3V, (VDD + 0.3V); (7)VOUT to AGND:-0.3V, (VDD + 0.3V); (8)Power Dissipation:842mW; (9)Operating Temperature Ranges:0℃ to + 70℃; (10)Storage Temperature Range:-65℃ to +150℃; (11)Lead Temperature (soldering, 10sec):+300℃.
Features
MAX500ACPE features: (1)Buffered Voltage Outputs; (2)Double-Buffered Digital Inputs; (3)Microprocessor and TTL/CMOS Compatible; (4)Requires No External Adjustments; (5)Two- or Three-Wire Cascadable Serial Interface; (6)16-Pin DIP/SO Package and 20-Pin LCC; (7)Operates from Single or Dual Supplies.

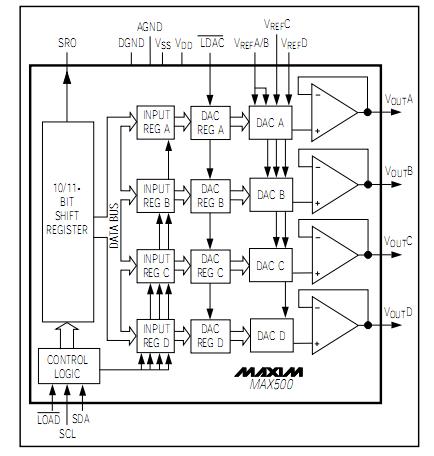

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MAX500ACPE |
Maxim Integrated Products |
DAC (D/A Converters) |
Data Sheet |
Negotiable |
|
||||||||||||
|
MAX500ACPE+ |
Maxim Integrated Products |
DAC (D/A Converters) 8-Bit 4Ch Precision DAC |
Data Sheet |
|
|
||||||||||||
