Product Summary
The BC846BLT1 is a general purpose transistor. It can be used in dc-dc converters and power management in portable and battery Cpowered products such as computers, printers, PCMCIA cards, cellular and cordless telephones.
Parametrics
BC846BLT1 absolute maximum ratings: (1)Collector-Emitter Voltage: 65 V; (2)Collector–Base Voltage: 80 V; (3)Emitter–Base Voltage: 6.0 V; (4)Collector Current — Continuous: 100 mA; (5)Total Power Dissipation: 225 mW; (6)Operating and Storage Temperature: -55 to 150°C; (7)Thermal Resistance – Junction–to–Ambient: 417 °C/W; (8)Thermal Resistance, Junction to Ambient: 556 °C.
Features
BC846BLT1 features: (1)Temperature sensing; (2)5 positive voltage inputs; (3)2 op amps for negative voltage monitoring; (4)3 fan speed monitoring inputs; (5)Input for additional temperature sensors; (6)Chassis Intrusion Detector input; (7)WATCHDOG comparison of all monitored values; (8)POST code storage RAM; (9)ISA and I2C. Serial Bus interfaces.

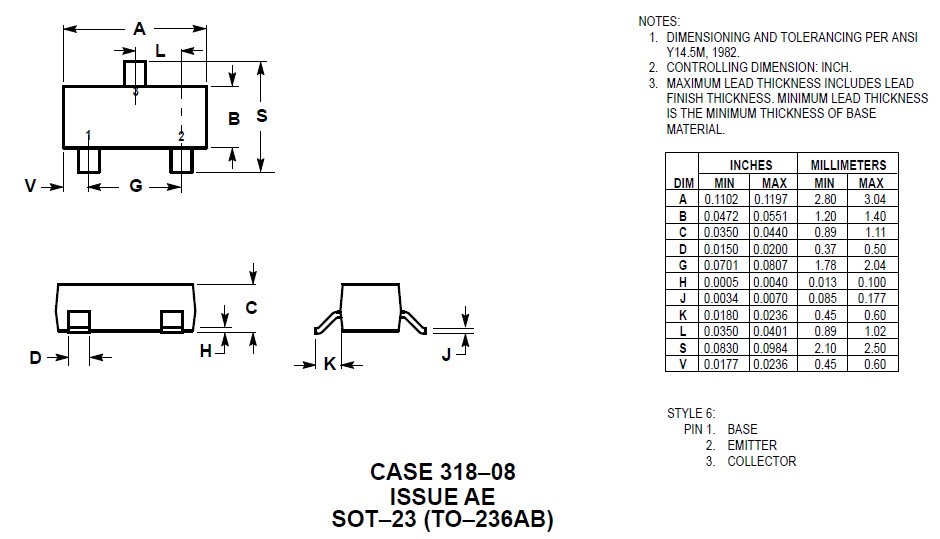

Diagrams
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |

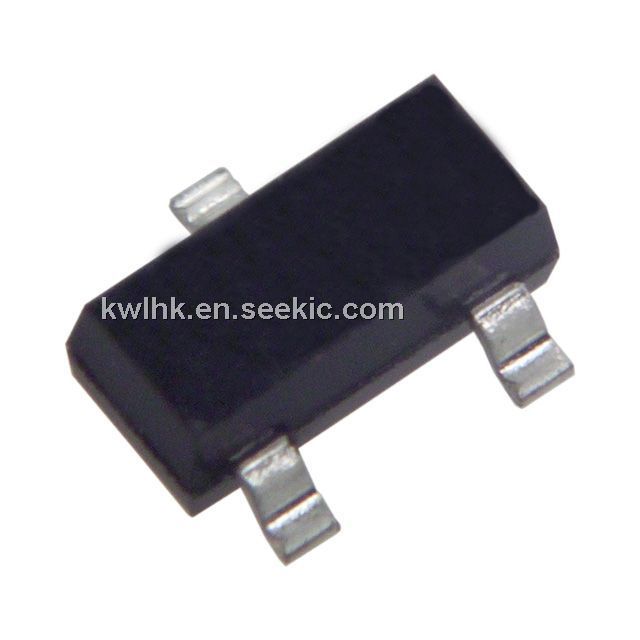

![]() BC846BLT1 |
![]() ON Semiconductor |
![]() Transistors Bipolar (BJT) 100mA 80V NPN |
![]() Data Sheet |
![]() Negotiable |
|
||||||||||||
![]() |
![]() BC846BLT1G |
![]() ON Semiconductor |
![]() Transistors Bipolar (BJT) 100mA 80V NPN |
![]() Data Sheet |
![]()
|
|
