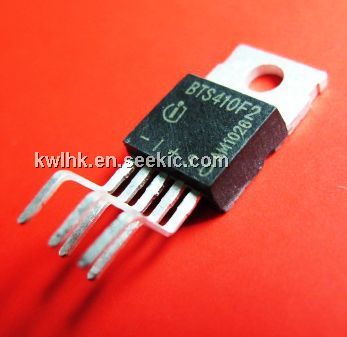

Product Summary
The BTS410F2 is a Smart Highside Power Switch. The applications of it are uC compatible power switch with diagnostic feedback for 12 V and 24 V DC grounded loads, inductive loads, Replaces electromechanical relays, fuses and discrete circuits.
Parametrics
BTS410F2 absolute maximum ratings: (1)Supply voltage:65V; (2)Load dump protection:100V; (3)Operating temperature range:-40℃ to +150℃; (4)Storage temperature range:-55℃ to +150℃; (5)Power dissipation:50 W; (6)Inductive load switch-off energy dissipation, single pulse:4.5J; (7)Input voltage (DC):-0.5V to +6V; (8)Current through input pin (DC): ±5.0mA; (9)Current through status pin (DC):±5.0mA.
Features
BTS410F2 features: (1)Overload protection; (2)Current limitation; (3)Short circuit protection; (4)Thermal shutdown; (5)Overvoltage protection (including load dump); (6)Fast demagnetization of inductive loads; (7)Reverse battery protection1); (8)Undervoltage and overvoltage shutdown with auto-restart and hysteresis; (9)Open drain diagnostic output; (10)Open load detection in ON-state; (11)CMOS compatible input; (12)Loss of ground and loss of Vbb protection; (13)Electrostatic discharge (ESD) protection.

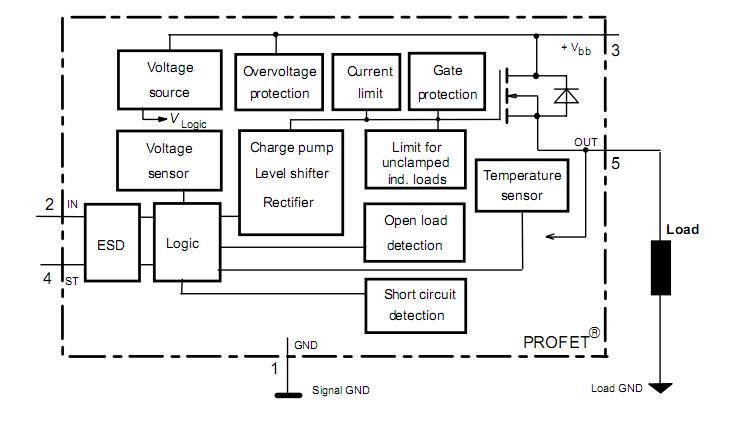

Diagrams
