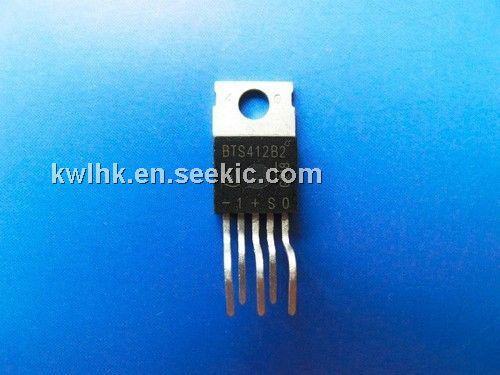

BTS412B2

Smart Highside Power Switch, 6.6 W, 13.5 V, TO

Rated 5 Rating 5 | reviews | Write a review

Price:: US $3.00~5.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 100 :	5.00 / Piece
101 ~ 500 :	4.00 / Piece
501 ~ 1000 :	3.00 / Piece

PartNumber:: BTS412B2

Brand:: eupec GmbH - infineon | Pack: | D/C:

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Mr. harry's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-08-27

From Other Seller

Part Number:BTS412B2
US $3.00 - 5.00
Quantity:

piece

Product Summary

The BTS412B2 is a Smart Highside Power Switch. N channel vertical power FET with charge pump, ground referenced CMOS compatible input and diagnostic feedback, monolithically integrated in Smart SIPMOSa technology. Fully protected by embedded protection functions. The applications of the BTS412B2: (1)mC compatible power switch with diagnostic feedback for 12 V and 24 V DC grounded loads; (2)All types of resistive, inductive and capacitve loads; (3)Replaces electromechanical relays, fuses and discrete circuits.

Parametrics

BTS412B2 absolute maximum ratings: (1)Supply voltage (overvoltage protection see page 3)Vbb: 65 V; (2)Load dump protection2)VLoadDump = UA + Vs, UA = 13.5 V RI3)= 0.5 W, RL= 6.6 W, td= 400 ms, IN= low or high VLoad dump4): 100 V; (3)Input voltage (DC)VIN: -10 ... +16 V; (4)Current through input pin (DC)IIN: ±5.0mA; (5)Current through status pin (DC)IST: ±5.0mA.

Features

BTS412B2 features: (1)Overload protection; (2)Current limitation; (3)Short circuit protection; (4)Thermal shutdown; (5)Overvoltage protection (including load dump); (6)Fast demagnetization of inductive loads; (7)Reverse battery protection1); (8)Undervoltage and overvoltage shutdown with auto-restart and hysteresis; (9)CMOS diagnostic output.
