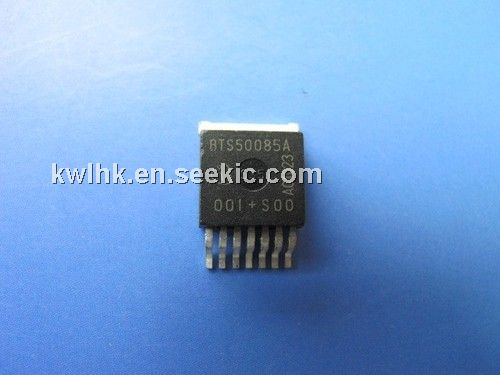

Product Summary

The BTS50085A is a Smart Highside High Current Power Switch. The applications of it are Power switch with current sense diagnostic feedback for up to 48 V DC grounded loads, Most suitable for loads with high inrush current like lamps and motors; all types of resistive and inductive loads, Replaces electromechanical relays, fuses and discrete circuits.

Parametrics

BTS50085A absolute maximum ratings: (1)Supply voltage: 62 V; (2)Supply voltage for full short circuit protection: 58 V; (3)Load current: self-limited A; (4)Load dump protection: 80 V; (5)Operating temperature range: -40 to +150; (6)Storage temperature range: -55 to +150.

Features

BTS50085A features: (1)Overload protection; (2)Current limitation; (3)Short circuit protection; (4)Over temperature protection; (5)Over voltage protection (including load dump); (6)Clamp of negative voltage at output; (7)Fast deenergizing of inductive loads 1); (8)Low ohmic inverse current operation; (9)Diagnostic feedback with load current sense; (10)Open load detection via current sense; (11)Loss of Vbb protection2); (12)Electrostatic discharge (ESD)protection; (13)Green product (RoHS compliant); (14)AEC qualified.

Diagrams

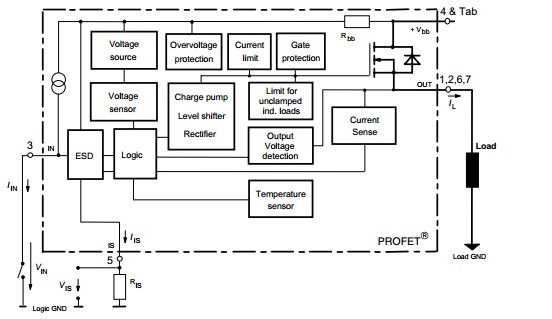

BTS50085A block diagram
