BTS740S2

Smart High Side, Power Switch, Two Channels, 2 x 30mΩ, Current Sense, 43 V Supply voltage

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.70~2.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.70~2.50

PartNumber:: BTS740S2

Brand:: Infineon Technologies AG - Infineon | Pack: DIP | D/C: 03+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. harry's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-08-10

From Other Seller

Part Number:BTS740S2
US $1.70 - 2.50
HCPL-7800A

US $2.50 - 4.10 / Piece
(0) Remove
2DI240A-055

US $70.00 - 100.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

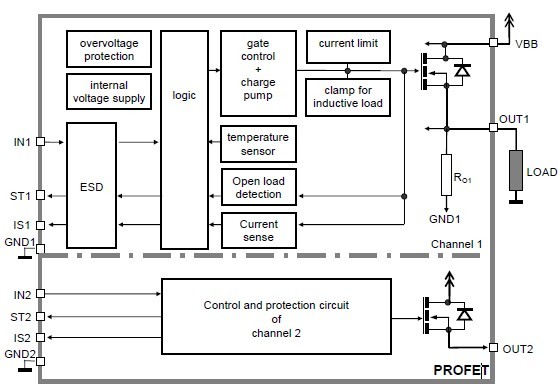

The BTS740S2 is a N channel vertical power MOSFET with charge pump, ground referenced CMOS compatible input, diagnostic feedback and proportional load current sense monolithically integrated in Smart SIPMOS technology. It Provides embedded protective functions.

Parametrics

BTS740S2 absolute maximum ratings: (1)Supply voltage Vbb: 43 V; (2)Supply voltage for full short circuit protection Vbb(SC): 34V; (3)Continuous input voltage VIN: -10 to +16V; (4)Load current (Short - circuit current, see page 5) IL self limited; (5)Power dissipation Ptot: 3.8W; (6)Operating temperature Tj: -40 to +150 ℃; (7)Storage temperature Tstg -55 to +150 ℃; (8)Current through input pin (DC) IIN: ± 2.0 mA; (9)Current through status pin (DC): ± 5.0 mA; (10)Current through current sense pin (DC): ±14mA.

Features

BTS740S2 features: (1)CMOS compatible input; (2)Undervoltage and overvoltage shutdown with auto-restart and hysteresis; (3)Fast demagnetization of inductive loads; (4)Logic ground independent from load ground; (5)Short circuit protection; (6)Overload protection; (7)Current limitation; (8)Thermal shutdown; (9)Overvoltage protection (including load dump) with external resistor; (10)Reverse battery protection with external resistor; (11)Loss of ground and loss of Vbb protection; (12)Electrostatic discharge protection (ESD).
