Product Summary

The BU4052BCF is a high voltage CMOS logic IC. It is configured with 8 channels, BU4052BC is configured with two 4 channels,BU4053BC series is configured with three 2 channels, BU4551B series is configured with four 2 channels, and switches applicable for each channel are turned on according to digital signals of control terminal. Even if the logic amplitude (VDD-VSS) of the control signal is small, signals of large amplitude (VDD-VEE) can be switched.

Parametrics

BU4052BCF absolute maximum ratings: (1)power supply voltage: -0.5 to 20V; (2)supply current: ±10mA; (3)operating temperature: -40 to 85℃; (4)storage temperature: -55 to 150℃; (5)input voltage: -0.5 to VDD+0.5V; (6)maximum junction temperature: 150℃.

Features

BU4052BCF features: (1)Low power consumption; (2) Wide operating supply voltage (3[V] to 18[V]); (3) High input impedance; (4) L-TTL2 input and LS-TTL1 can be driven directly; (5)Applicable channel switches can be turned "ON" and "OFF" by the digital control signal; (6)Small control voltage (VDD-VSS) can control signals of large amplitude (VDD-VEE).

Diagrams

BU4052BCF block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

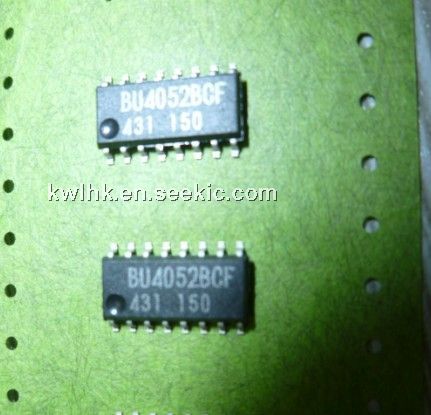

BU4052BCF
BU4052BCF

Other


Data Sheet

Negotiable
BU4052BCF-E2
BU4052BCF-E2

ROHM Semiconductor

Multiplexer Switch ICs DUAL 4 CH ANALOG MULTIPLEXER

Data Sheet

0-1: $0.59
1-10: $0.43
10-100: $0.33
100-500: $0.23
BU4052BCFV-E2
BU4052BCFV-E2

ROHM Semiconductor

Multiplexer Switch ICs DUAL 4 CH ANALOG MULTIPLEXER

Data Sheet

0-2500: $0.26
BU4052BCFV
BU4052BCFV

Other


Data Sheet

Negotiable
