Product Summary
The BU4052BCF-E2 is a high voltage CMOS logc IC. It is configured with 8 channels, BU4052BC is configured with two 4 channels,BU4053BC series is configured with three 2 channels, BU4551B series is configured with four 2 channels, and switches applicable for each channel are turned on according to digital signals of control terminal.
Parametrics
BU4052BCF-E2 absolute maximum ratings: (1)power supply voltage: -0.3 to 18V; (2)Supply current: ±10mA; (3)operating temperature: -40 to 85℃; (4)storage temperature: -55 to 150℃; (5)input voltage: -0.5 to VDD+0.5V; (6)Maximum junction temperature: 150℃.
Features
BU4052BCF-E2 features: (1)Low power consumption; (2)Wide operating supply voltage (3[V] to 18[V]); (3)High input impedance; (4)L-TTL2 input and LS-TTL1 can be driven directly; (5)Applicable channel switches can be turned "ON" and "OFF" by the digital control signal; (6)Small control voltage (VDD-VSS) can control signals of large amplitude (VDD-VEE).
Diagrams
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |

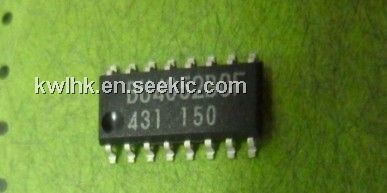

![]() BU4052BCF-E2 |
![]() ROHM Semiconductor |
![]() Multiplexer Switch ICs DUAL 4 CH ANALOG MULTIPLEXER |
![]() Data Sheet |
![]()
|
|
||||||||||||
