Product Summary
The BU6235KV is a Ceramic Disc Capacitor.
Parametrics
BU6235KV absolute maximum ratings: (1)Capacitance Range: 100pF to 47000pF.; (2)Capacitance Tolerance: ±10%, +80% to -20%.; (3)Operating Temperature Range: -25°C to 85°C (Y5P), 10°C to 85°C (Z5V).; (4)Rated Working Voltage: 50V.; (5)Dissipation Factor (tan θ): Y5P tan θ ≤ 2.5%.; (6)Insulation Resistance (IR)at 25°C: 10,000 MΩ Minimum or 200 MΩ/μF, whichever is smaller.; (7)Dielectric Strength: 2.5 times the rated WVDC.; (8)Testing Parameters: 1KHz±20%, 1.0±0.2 Vrms.
Features
BU6235KV features: (1)Capacitance has non linear temperature coefficient.; (2)Large capacitance in small size.; (3)Wide range of general purpose applications.

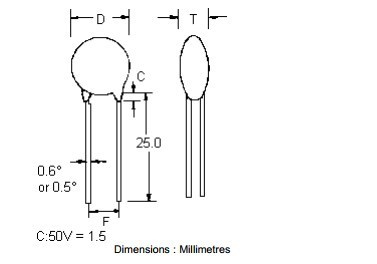

Diagrams
