Product Summary

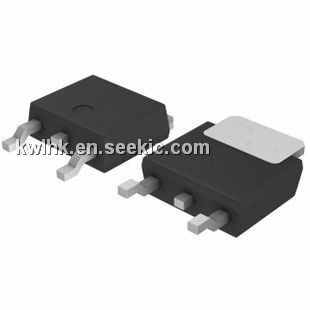

The C3518 is a Transistor.



Parametrics

C3518 absolute maximum ratings: (1)collector-base voltage vcbo: 60 v; (2)collector-emitter voltage vceo: 60 v; (3)emitter-base voltage vebo: 7 v; (4)collector current ic: 5 a; (5)collector current (pulse)*1 icp: 7 a; (6)total power dissipation *2 pt: 2 w; (7)Junction temperature Tj: 150°C; (8)Storage temperature Tstg: 55 to 150°C.

Features

C3518 features: (1)Low VCE(sat); (2)Fast switching speed; (3)High DC current gain.

Diagrams

C3518 pin connection
