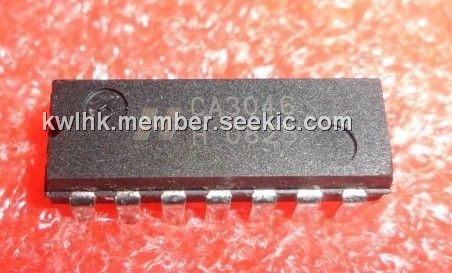

Product Summary
The CA3046 consists of five generalpurpose silicon NPN transistors on a common monolithicsubstrate. The transistor is internally connected to form a differentially connected pair.
The transistors of the CA3046 are well suited to a wide variety of applications in low power systems in the DC through VHF range. They may be used as discretetransistors in conventional circuits. However, in addition, they provide the very significant inherent integrated circuit advantages of close electrical and thermal matching.
Parametrics
The absolute maximum ratings of CA3046 are
(1)Collector-to-Emitter Voltage (VCEO): 15V;
(2)Collector-to-Base Voltage (VCBO): 20V;
(3)Collector-to-Substrate Voltage (VCIO, Note 1):20V;
(4)Emitter-to-Base Voltage (VEBO): 5V;
(5)Collector Current (IC): 50mA
Features
The features of CA3046 can be summarized as
(1)Two Matched Transistors, -VBE Match: ±5mV; -IIO Match: 2μA (Max);
(2)Low Noise Figure: 3.2dB (Typ) at 1kHz;
(3)5 General Purpose Monolithic Transistors;
(4)Operation From DC to 120MHz;
(5)Wide Operating Current Range;
(6)Full Military Temperature Range
Diagrams
<DIV><IMG alt="CA3046 Pin Configuration" src="http://www.seekic.com/uploadfile/ic-mfg/20127920240408.jpg" border=0></DIV>
