Product Summary
The CG21753-123 is a broadband mmic amplifier. The CG21753-123 housed in a lowcost surface mountable package provide a high output intercept point, high gain and low noise figure and do not require an external bias resistor. It is ideal for: (1)if or rf buffer amplifier; (2)driver/pre-driver for catv/sat tv amplifier; (3)vco buffer driving up/down converter; (4)general rx/tx amplification; (5)lnb if path; (6)ism band transceivers - wlan - ieee 802.11, bluetooth; (7)iso/epc compliant uhf rfid readers.
Parametrics
CG21753-123 absolute maximum ratings: (1)vcc positive power supply: +4.0 vdc; (2)top operating temperature: -40 to +85°C; (3)tstg storage temperature: -65 to +150°C; (4)tsol soldering temperature: 300°C.
Features
CG21753-123 features: (1)Characterized for 100-3000MHz Operation; (2)+26 dBm Output IP3; (3)+17 dB Gain at 850 MHz; (4)+12 dB Gain at 2000 MHz; (5)Internally 50 matched input and output; (6)+3V Single Voltage Supply; (7)Low Current Consumption: 30mA.

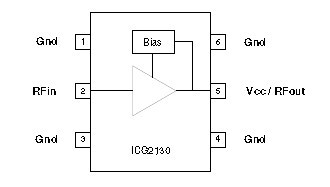

Diagrams
