Product Summary

The CPC5602CTR is an N-channel l depletion mode Fied Effect Transistor (FET) that utilizesproprietary third generation vertical DMOS process of Clare. The CPC5602CTR has a typical on-resistance of 8Ω,a reakdown voltage exceeding 350V and is available in an SOT-223 package.Applications of the CPC5602CTR include: Support Component for LITELINK Data Access Arrangement (DAA) , Normally-on switch, Telecom and Constant Current Source.

Parametrics

CPC5602CTR absolute maximum ratings: (1) VDSS Voltage: 350V; (2) Total Package Dissipation: 2.5W; (3) Operational Temperature: -40 to +85°C; (4) Storage Temperature: -40 to +125°C; (5) Soldering Temperature: +220°C.

Features

CPC5602CTR features: (1) Low on resistance 10 ohms; (2) High input impedance; (3) Low input and output leakage; (4) Small package size SOT-223; (5) PC Card (PCMCIA) Compatible; (6) PCB Space and Cost Savings.

Diagrams

CPC5602CTR pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

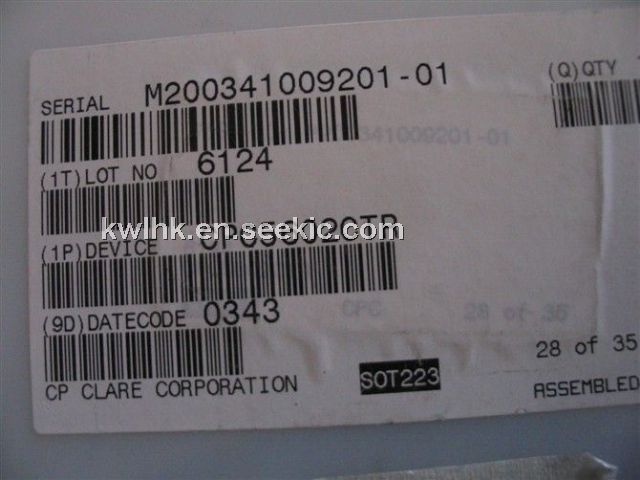

CPC5602CTR
CPC5602CTR
Clare
MOSFET N Channel Depletion Mode FET, T/R
Data Sheet
Negotiable
